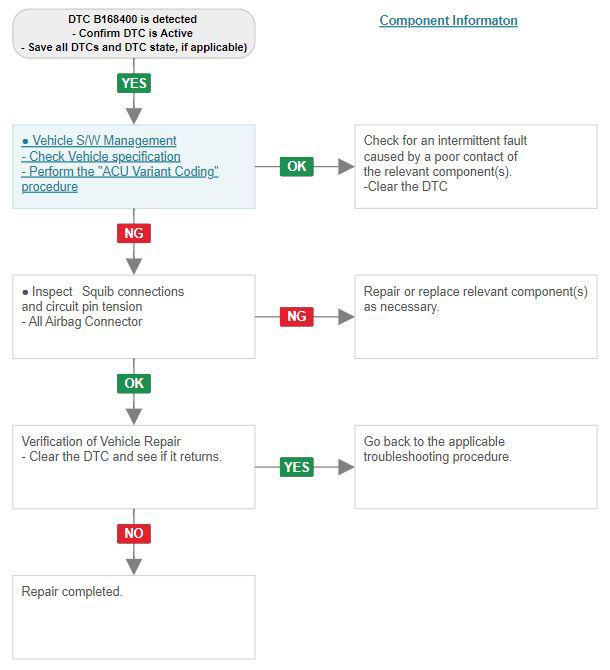

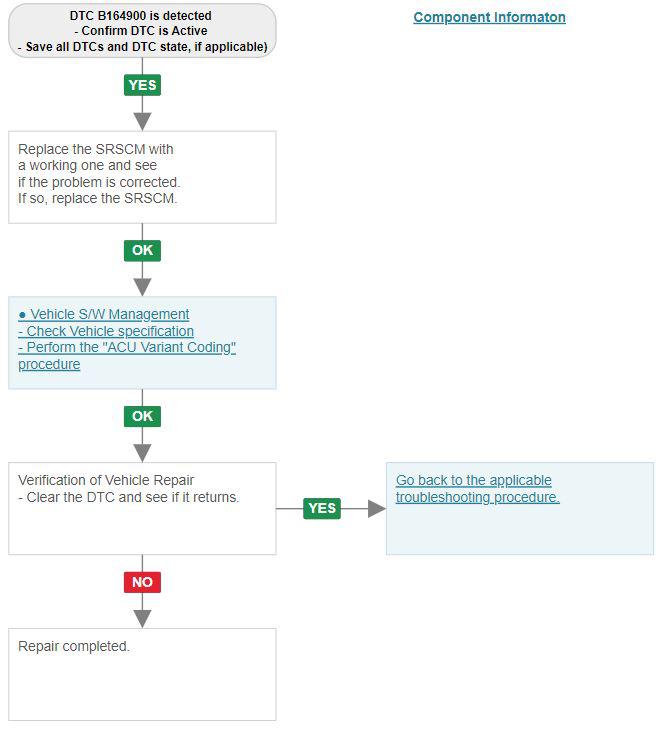

Diagnostic Flowchart

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: If you strike or spin the SRSCM at the Ignition switch ON state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.
