Monitor Scantool Data
- Ignition switch OFF, connect GDS.
- Ignition switch ON and the engine OFF, select "Current Data" mode.

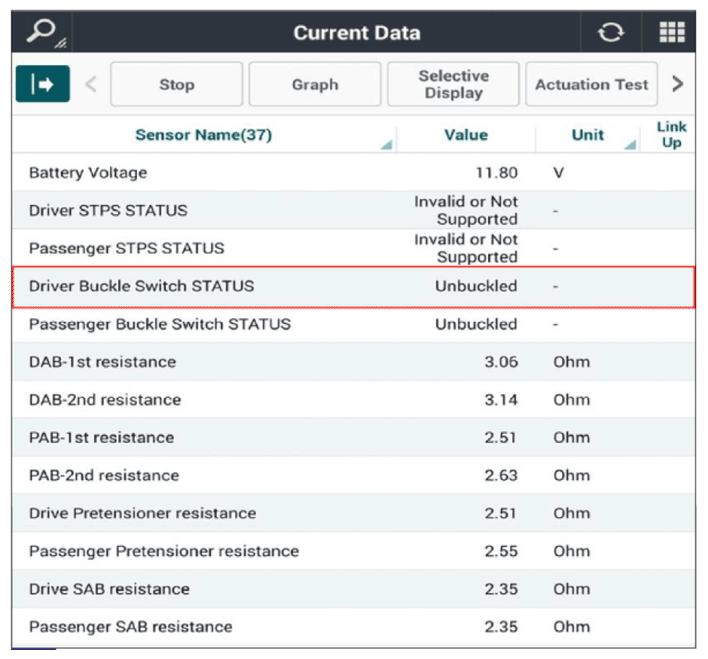

- Monitor the "Driver Buckle Switch status" parameter on the GDS.
 Courtesy of HYUNDAI MOTOR AMERICA
|
Reference
: Buckle Switch on: Buckled, Buckle Switch off: Unbuckled
