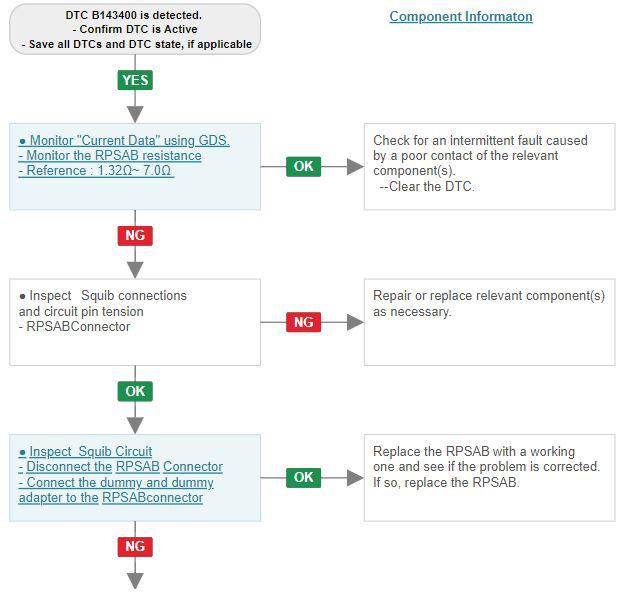

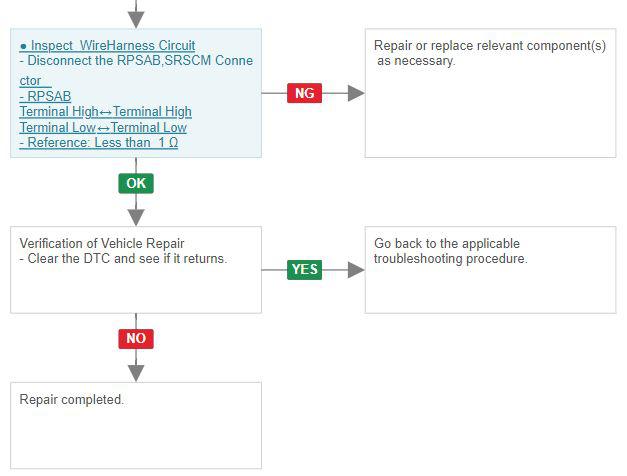

Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (Except HEV) (2 Of 3) >> DTC B1434-00: Side Airbag Rear-Passenger Resistance Too Low >> Troubleshooting >> Diagnostic Flowchart
