Monitor Scantool Data

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the engine OFF, select "Current Data" mode.
  3. Monitor the "Rear Driver SAB resistance" parameter on the GDS.

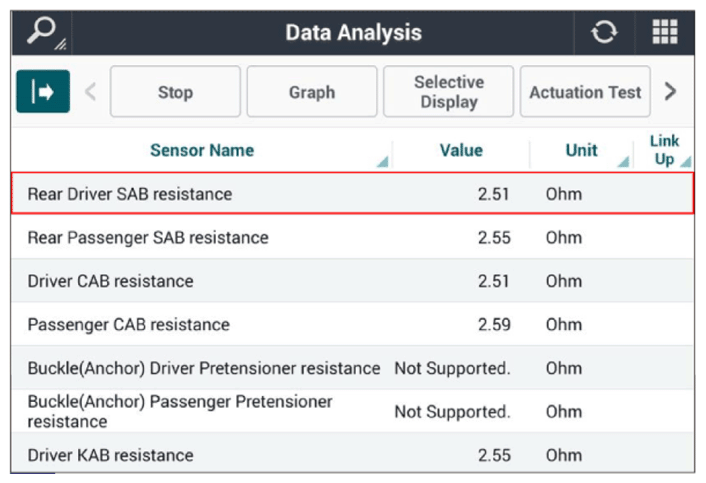

G14521644Courtesy of HYUNDAI MOTOR AMERICA

Reference  : Resistance of "Rear Driver SAB" is between 1.48Ω and 7.0Ω

Reference  : In a case of an open in the "Rear Driver SAB" circuit: FAIL In a case of a short to battery in the "Rear Driver SAB" circuit: FAIL In a case of a short to ground in the "Rear Driver SAB" circuit: FAIL
