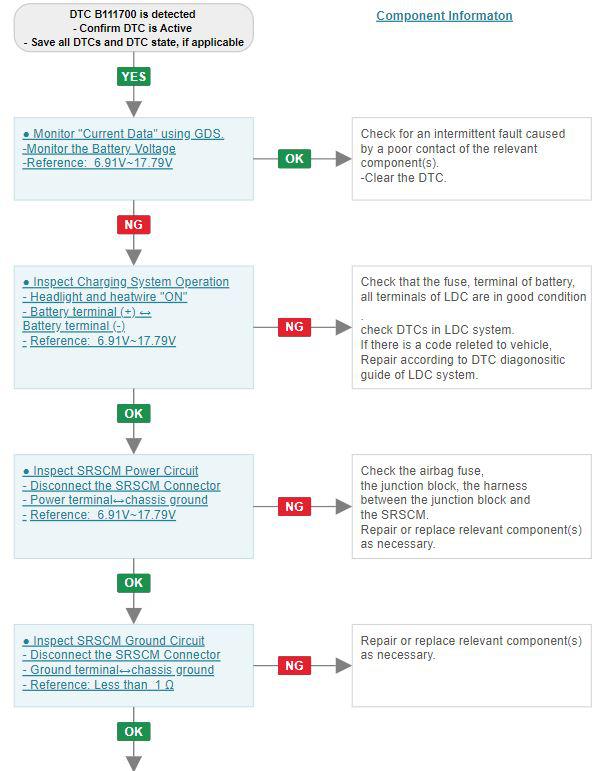

Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (Except HEV) (1 Of 3) >> DTC B1117-00: B+ Line Disconnected >> Troubleshooting >> Diagnostic Flowchart
