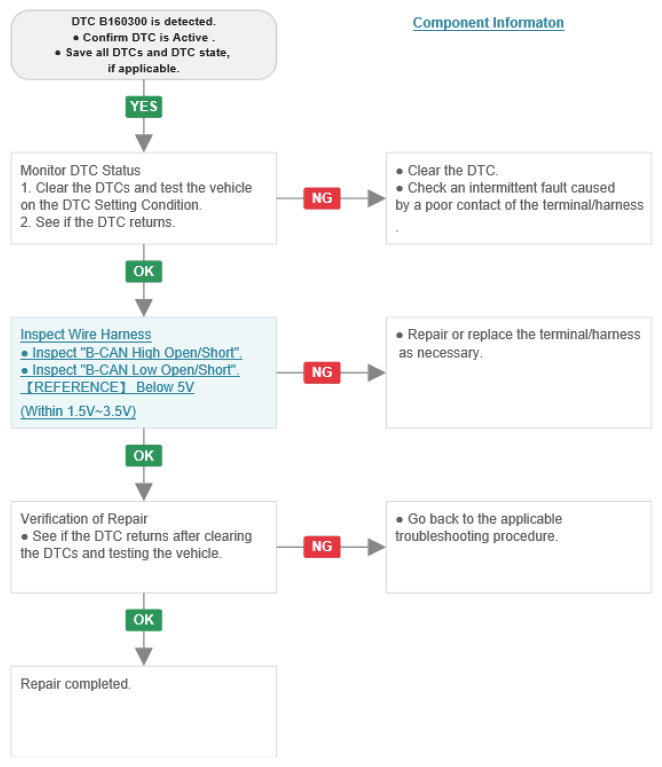

Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Seat Heater Ventilation Control Unit (Rear) Diagnosis (Except HEV) >> DTC B1603-00: CAN Bus OFF >> Troubleshooting >> Diagnostic Flowchart
