Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.

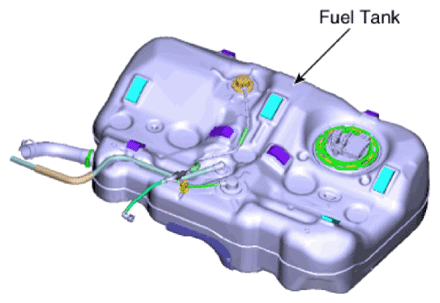

- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF, and disconnect the battery negative (-) terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

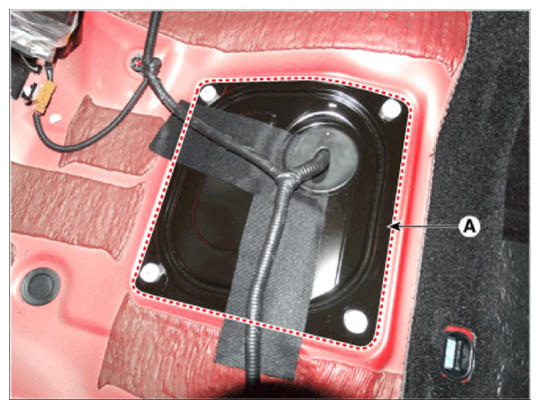

- Remove the fuel pump service cover (A).

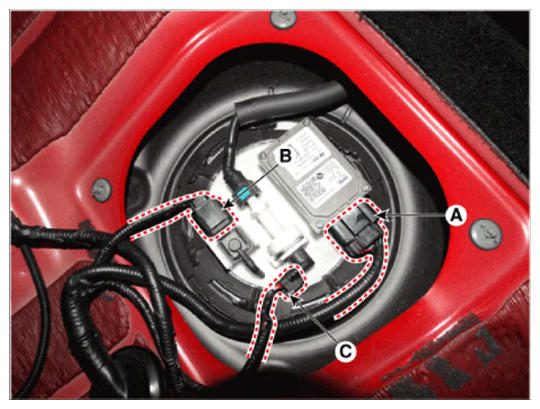

- Disconnect the fuel pump control module (FPCM) connector (A).
- Disconnect the fuel tank pressure sensor (FTPS) connector (B).
- Disconnect the fuel pressure sensor connector (C).

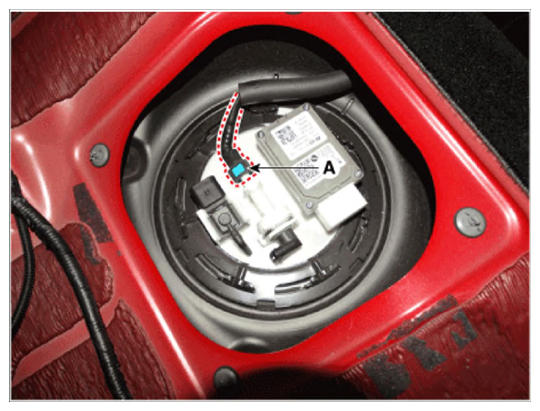

- Disconnect the fuel feed tube quick-connector (A).
- Lift the vehicle.
- Remove the rear muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

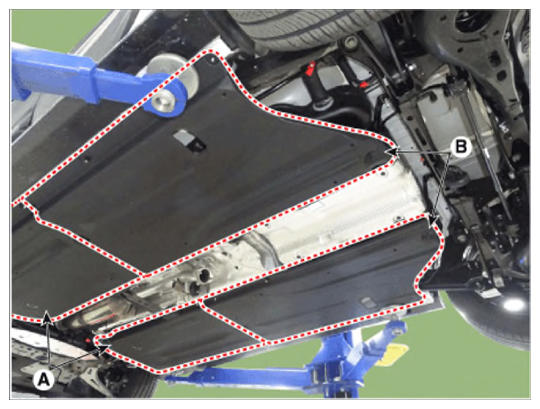

- Remove the floor under cover front (A).
- Remove the floor under cover rear (B).
Floor under cover mounting bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
Floor under cover mounting nut:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb.ft)

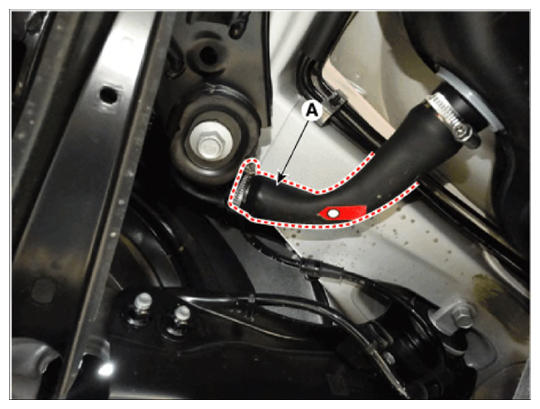

- Disconnect the fuel filler hose (A).

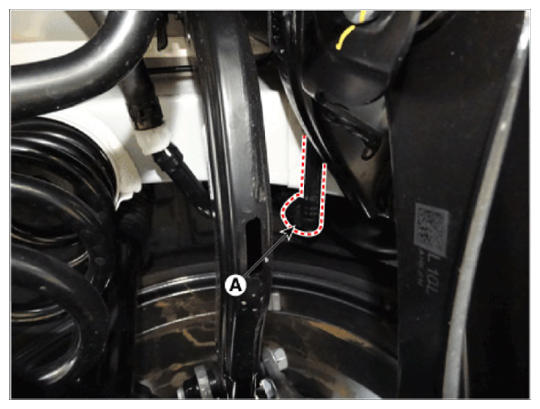

- Disconnect the leveling hose quick-connector (A).

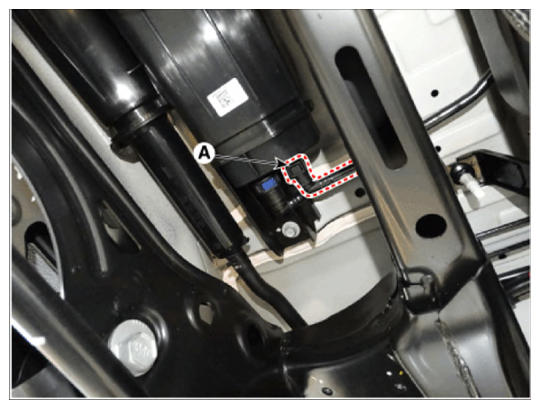

- Disconnect the vapor hose quick connector (A).

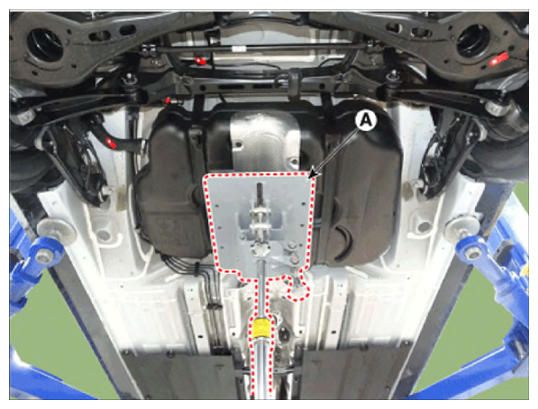

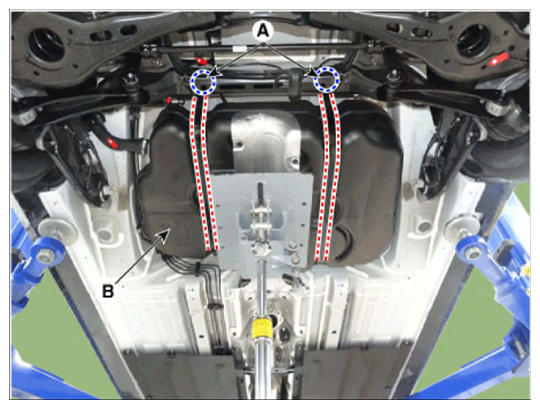

- Support the fuel tank with a jack (A).
- Loosening the mounting nut (A), and then removing the fuel tank (B).
