Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

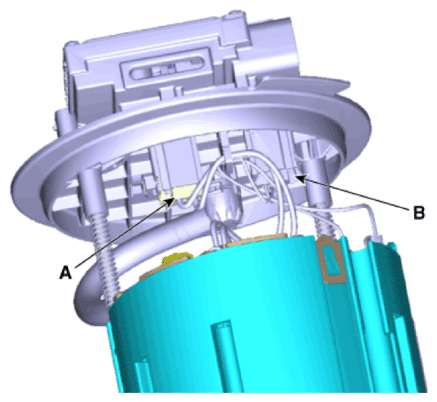

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G14525221Courtesy of HYUNDAI MOTOR AMERICA

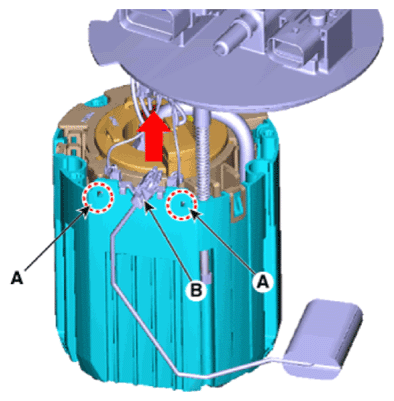

  3. Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.
G14525222Courtesy of HYUNDAI MOTOR AMERICA

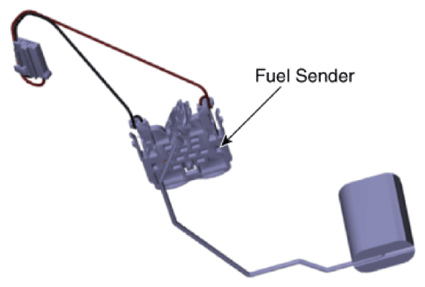

G14525223Courtesy of HYUNDAI MOTOR AMERICA
