Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

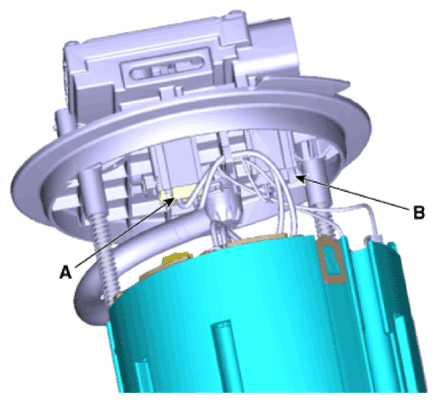

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G14525211Courtesy of HYUNDAI MOTOR AMERICA

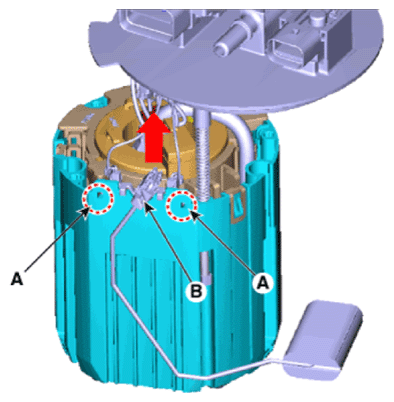

  3. Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.
    G14525212Courtesy of HYUNDAI MOTOR AMERICA

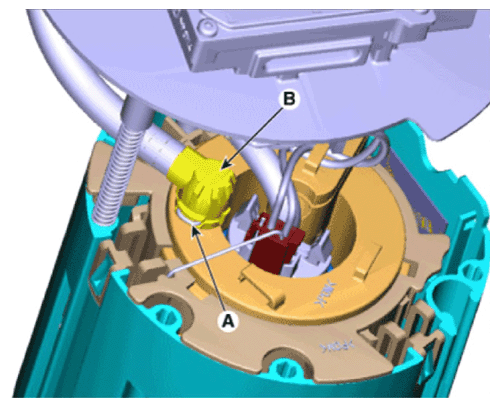

  4. Remove the fixing pin (A) and then disconnect the fuel feed tube (B).
    G14525213Courtesy of HYUNDAI MOTOR AMERICA

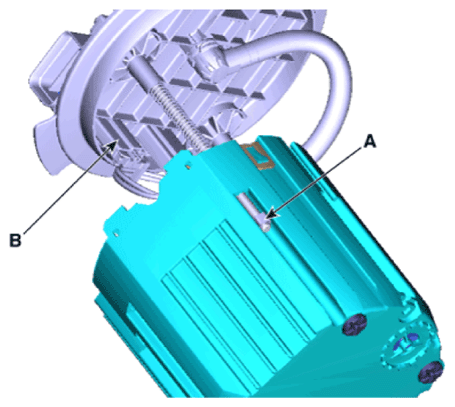

  5. Release the fixing hook (A) and then remove the head assembly (B).
    G14525214Courtesy of HYUNDAI MOTOR AMERICA

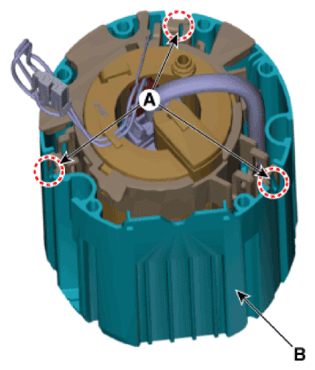

  6. Release the fixing hook (A) and then remove the reservoir-cup (B).
    G14525215Courtesy of HYUNDAI MOTOR AMERICA

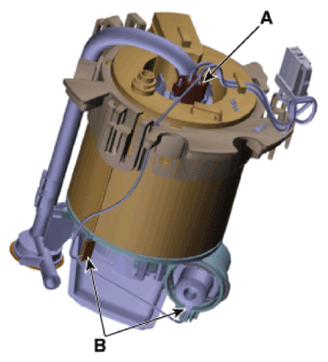

  7. Disconnect the fuel pump motor connector (A).
  8. Disconnect the ground cable (B).
    G14525216Courtesy of HYUNDAI MOTOR AMERICA

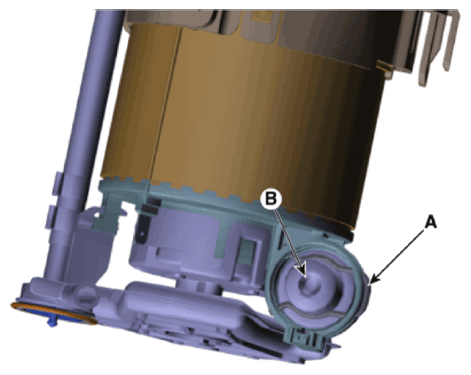

  9. Remove the fixing pin (A) and then disconnect the fuel pressure regulator (B).
    G14525217Courtesy of HYUNDAI MOTOR AMERICA

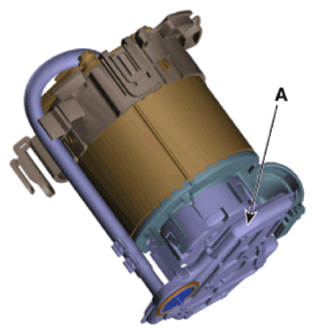

  10. Release the fixing hook and then remove the free filter (A).
    G14525218Courtesy of HYUNDAI MOTOR AMERICA

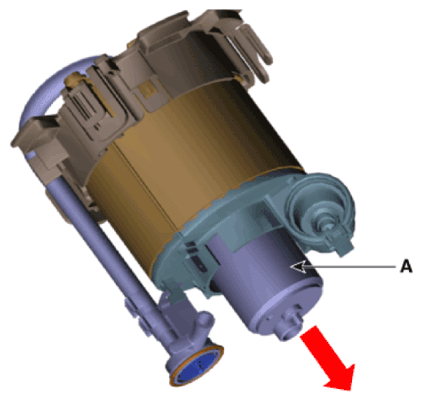

  11. Remove the fuel pump motor (A) from the fuel filter.
G14525219Courtesy of HYUNDAI MOTOR AMERICA

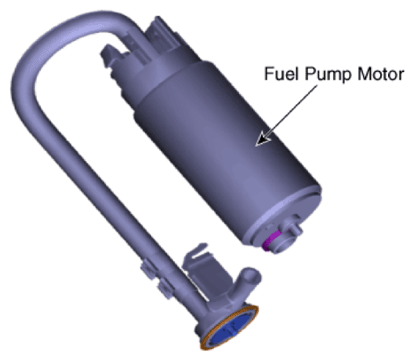

G14525220Courtesy of HYUNDAI MOTOR AMERICA
