Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF, and disconnect the battery negative (-) terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

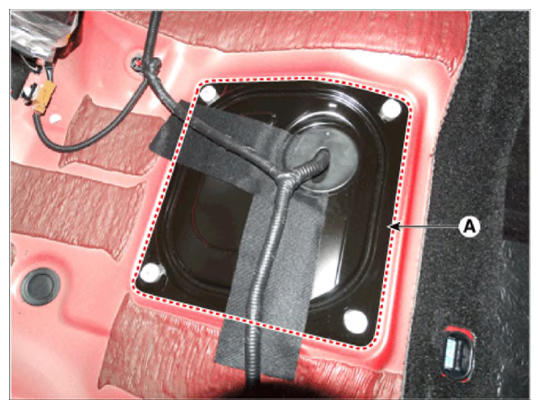

- Remove the fuel pump service cover (A).

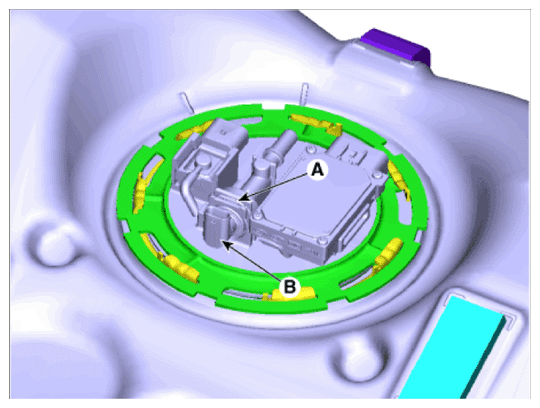

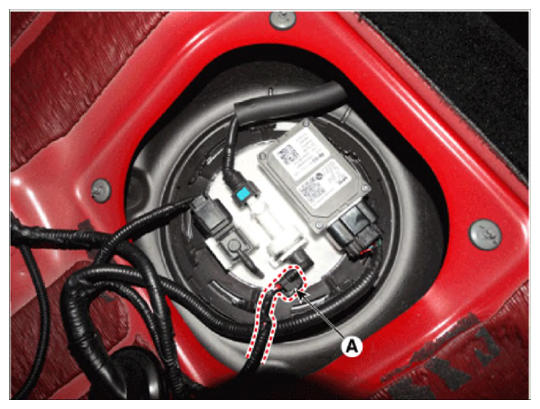

- Disconnect the fuel pressure sensor connector (A).
