Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

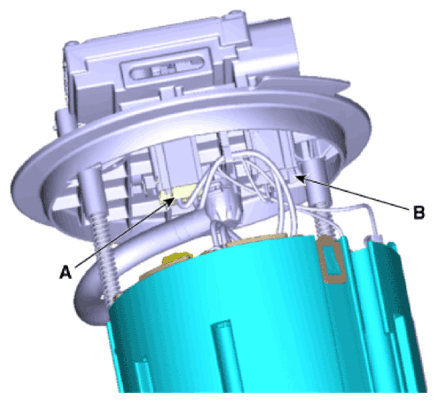

- Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

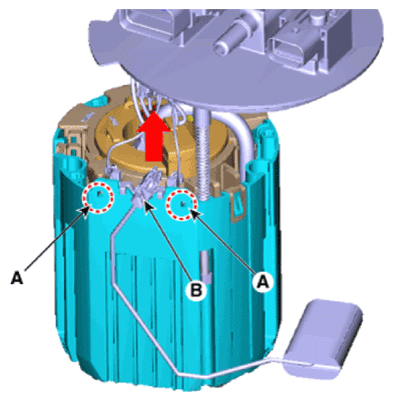

- Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.

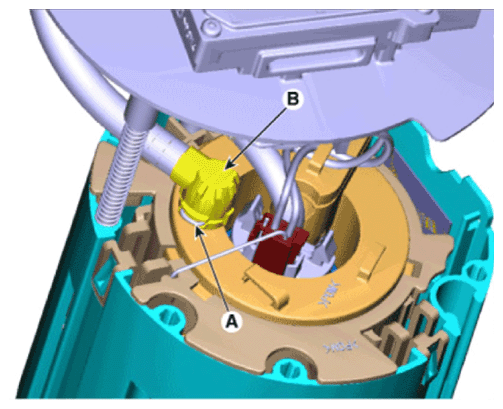

- Remove the fixing pin (A) and then disconnect the fuel feed tube (B).

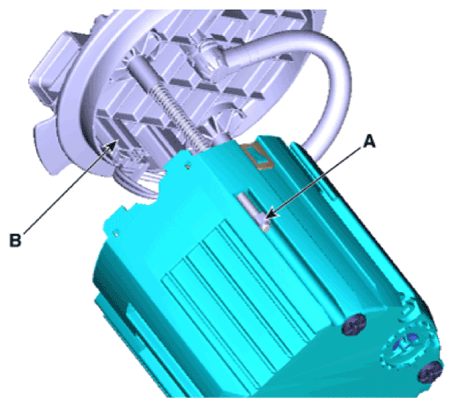

- Release the fixing hook (A) and then remove the head assembly (B).

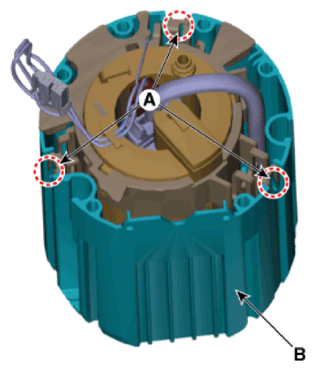

- Release the fixing hook (A) and then remove the reservoir-cup (B).

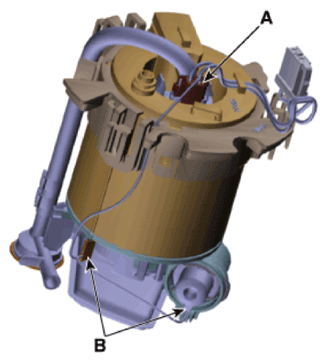

- Disconnect the fuel pump motor connector (A).
- Disconnect the ground cable (B).

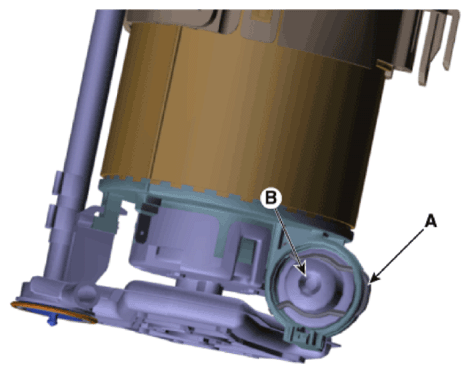

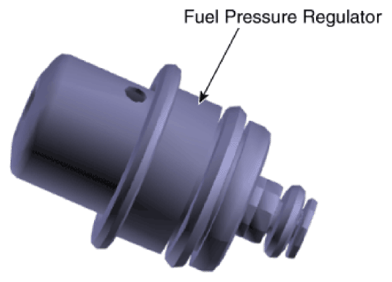

- Remove the fixing pin (A) and then disconnect the fuel pressure regulator (B).
