[Low Pressure Fuel Line]
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition off and disconnect the battery negative cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

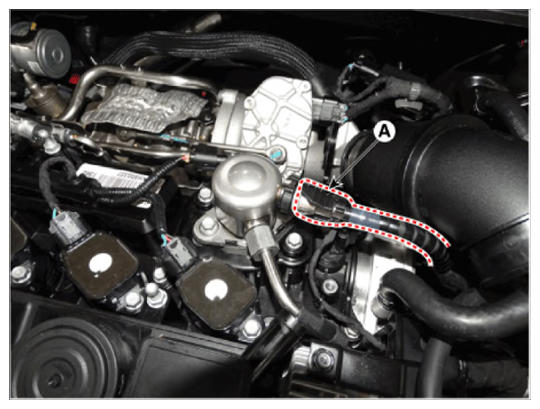

- Disconnect the fuel feed line quick-connector (A).NOTE:

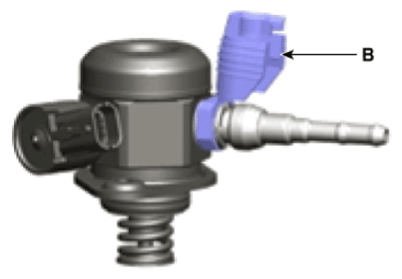

- Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)

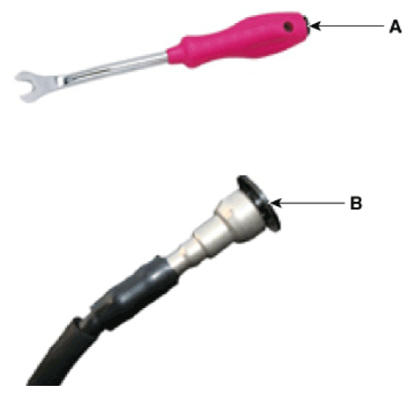

CAUTION:- When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, fuel line leak can be occurred due to a bad connection.

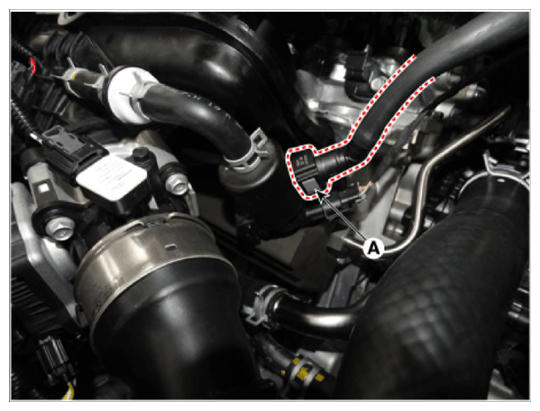

- Disconnect the vapor quick-connector (A) which is connected from the PCSV.
- Lift the vehicle.
- Remove the rear muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

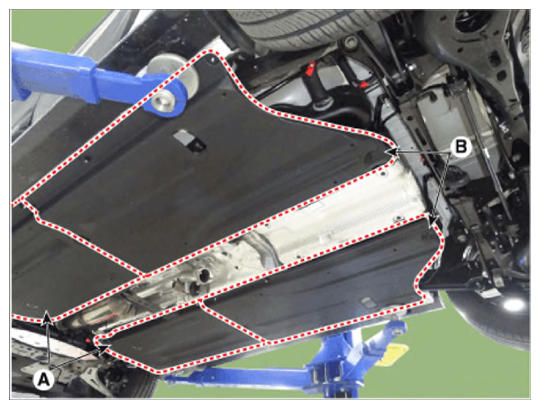

- Remove the floor under cover front (A).
- Remove the floor under cover rear (B).
Floor under cover mounting bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
Floor under cover mounting nut:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb.ft)
- Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

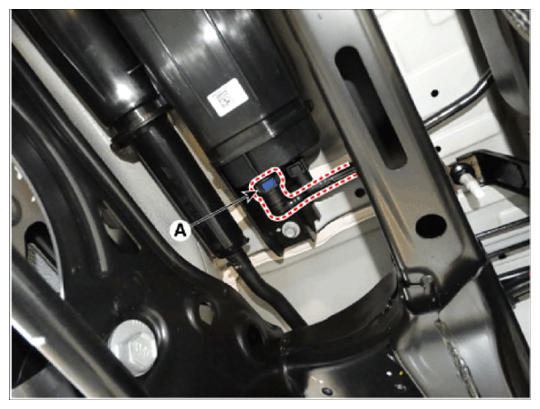

- Disconnect the vapor quick-connector (A).

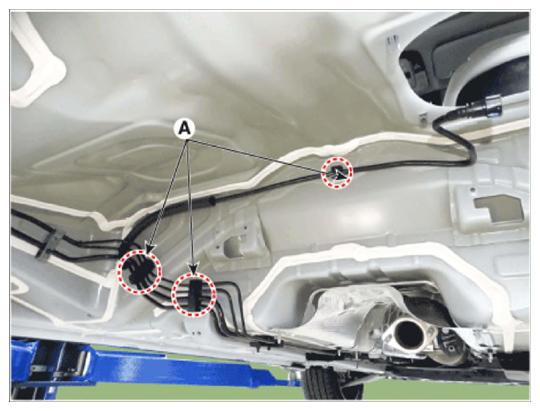

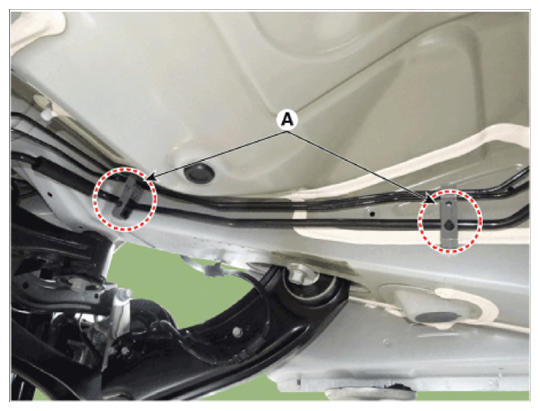

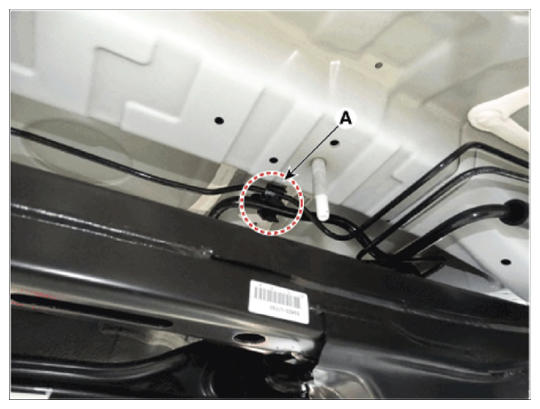

- Release the fixing clip (A) of the vapor and fuel feed tube line using a driver.

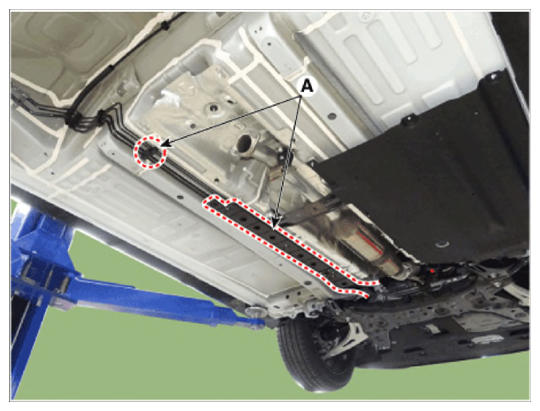

- Remove the fuel line from the bottom of the vehicle.
