[High Pressure Fuel Line]
WARNING: This page is about a different variant/trim than selected.
- Release residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition off and disconnect the battery negative cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Disconnect the engine wiring connector and harness clamp.

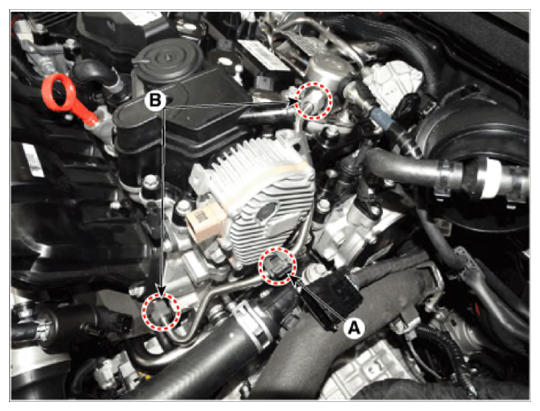

- Loosen the high pressure fuel pipe function block mounting bolt (A) and then loosening the flange nut (B) by using the SST (No. 09314-3Q100 or 09314-27130).
Tightening Torque (bolt):
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
Tightening Torque (nut):
29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
