Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.
- Remove the rear-left wheel & tire and wheel house cover.

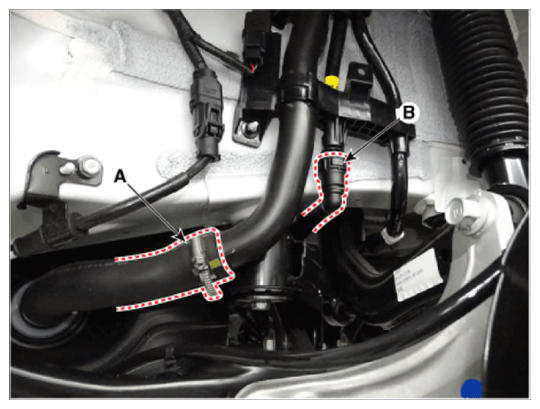

- Disconnect the fuel feed hose (A).
- Disconnect the leveling quick-connector (B).

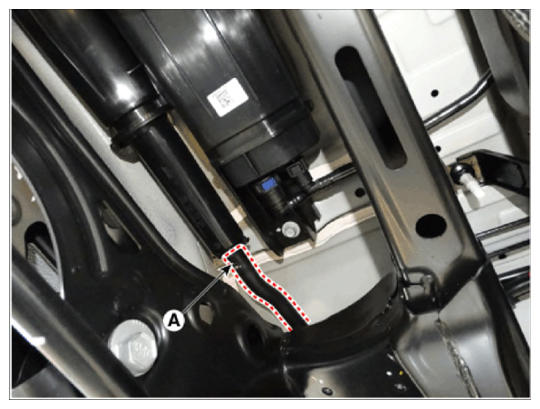

- Disconnect the vent hose (A).

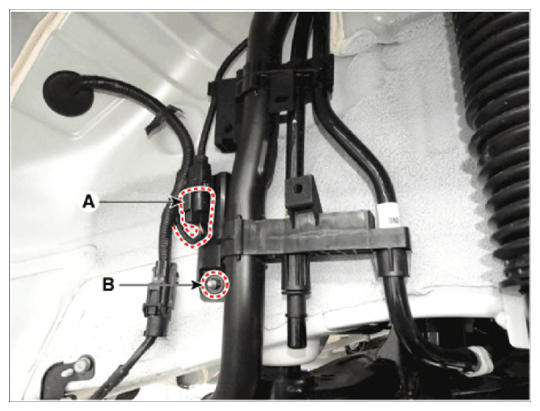

- Disconnect the canister close valve extension connector (A).
- Remove the filler-neck assembly after loosening mounting nut (B).
Filler-neck assembly mounting nut:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
