Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE:
    • Do not reuse the high pressure fuel pipe.
    • Do not deforming the high pressure fuel pipe.
    • When tightening the nut, do not tilt the torque wrench.
    • Install the component with the specified torques.
    • Install the high pressure fuel pipe and then check the oil leakage.
    • When Installing the high pressure fuel pipe, using a SST (SST No.: 09314-3Q100 or 09314-27130).
    NOTE:
    • Do not reuse the mounting bolt.
    • Do not reuse the injector fixing clip.

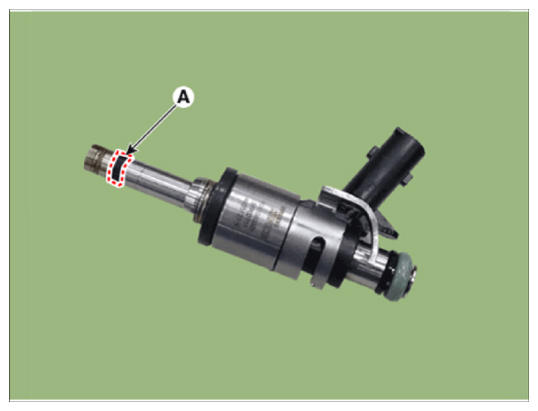

    • Do not reuse the combustion seal (A).
      G14525270Courtesy of HYUNDAI MOTOR AMERICA
    • Be careful not to apply oil to combustion seal.

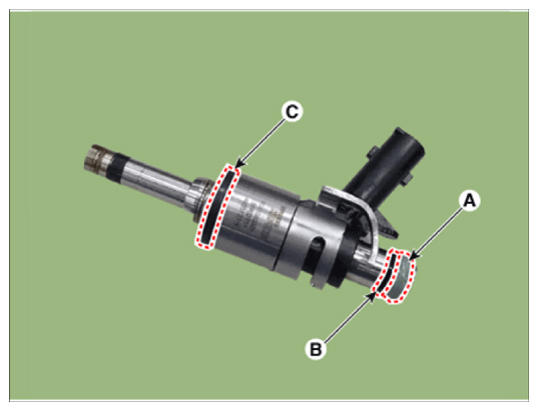

    • Do not reuse the O-ring (A), support disk (B), rubber washer (C).
      G14525271Courtesy of HYUNDAI MOTOR AMERICA
    • When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
    • Apply the engine oil to the injector O-ring.
    • When inserting the injector, be careful not to damage the injector tip.
