Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the valves.

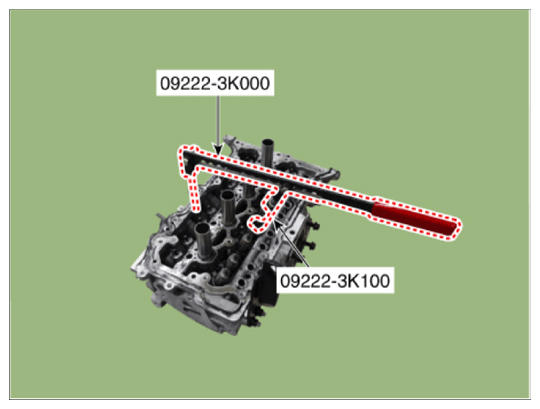

    1. Using the SST (09222-3K000, 09222-3K100), compress the valve spring and remove the valve spring retainer lock (A).
      G14524309Courtesy of HYUNDAI MOTOR AMERICA
    2. Remove the retainer (B).
    3. Remove the valve spring (C).
    4. Remove the valve (E).
    5. Using needle-nose pliers, remove the valve stem seal (D).
    G14524310Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Always use new valve stem seals.
