Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

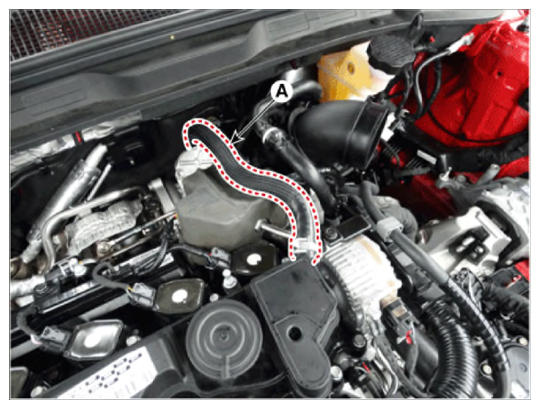

  3. Disconnect the breather hose (A).
    G14524157Courtesy of HYUNDAI MOTOR AMERICA

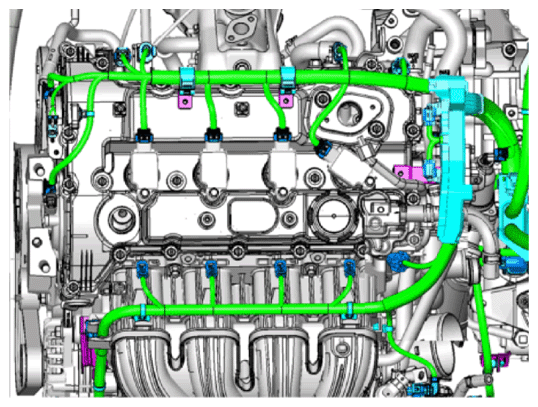

  4. Disconnect the wiring connectors and harness clamps and remove the connector brackets around the cylinder head cover.
    G14524158Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the high pressure fuel pump.

    (Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")

  6. Remove the ignition coil.

    (Refer to Engine Electrical System - "IGNITION COIL ")

  7. Remove the CVVD actuator.

    (Refer to CVVD (CONTINUOUSLY VARIABLE VALVE DURATION) SYSTEM Engine Control/Fuel System - "CVVD Actuator")

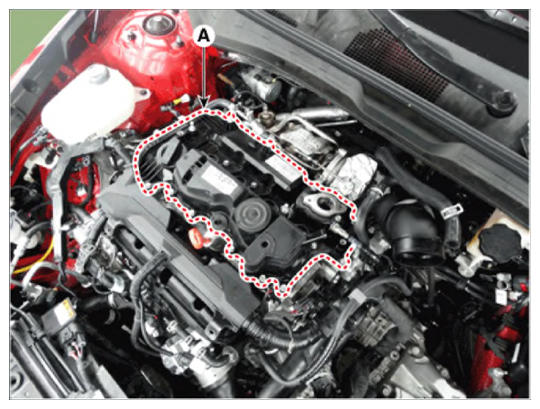

  8. Remove the cylinder head cover (A) with gasket.
G14524159Courtesy of HYUNDAI MOTOR AMERICA
