Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the cylinder head cover.
    1. Install the new gasket.
      NOTE:
      • Always use the new inner and outer cylinder head cover gaskets.
    2. The hardening sealant located on the upper area between timing chain cover and cam carrier should be removed before assembling cylinder head cover.

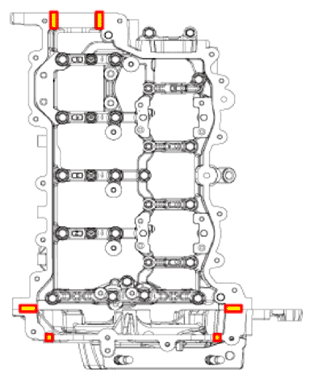

    3. Apply liquid gasket sealant to the marked area of the cam carrier and assemble within 5 minutes of application.

      Width:  2.0 - 3.0 mm (0.0787 - 0.1181 in.)

      Specification:  LOCTITE 5900H or above.

      G14524160Courtesy of HYUNDAI MOTOR AMERICA

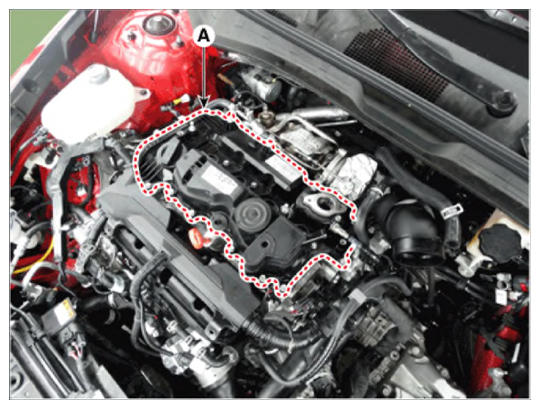

    4. Install the cylinder head cover (A) by tightening the bolts, in several passes, in the sequence as shown.

      Tightening torque

      Step 1: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

      Step 2: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14524161Courtesy of HYUNDAI MOTOR AMERICA

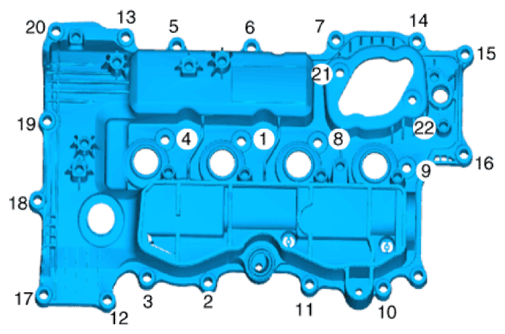

    Fig 1: Cylinder Head Cover Bolts Tightening Sequence
    G14524162Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The firing and/or blow out test should not be performed within 30 minutes of assembling the cylinder head cover.
  2. Install the other parts in the reverse order of removal.
