Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 8 (Cylinder Head Assembly - 1.6L (Except HEV)) >> Cylinder Head Cover >> Components And Components Location >> Components

Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

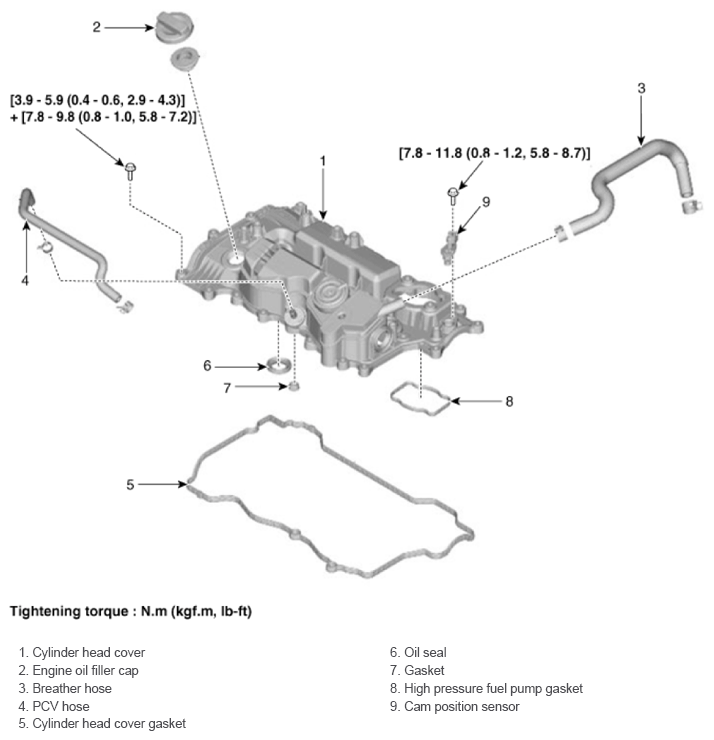

Fig 1: Cylinder Head Cover Components Location With Torque Specification
G14524156Courtesy of HYUNDAI MOTOR AMERICA
