Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

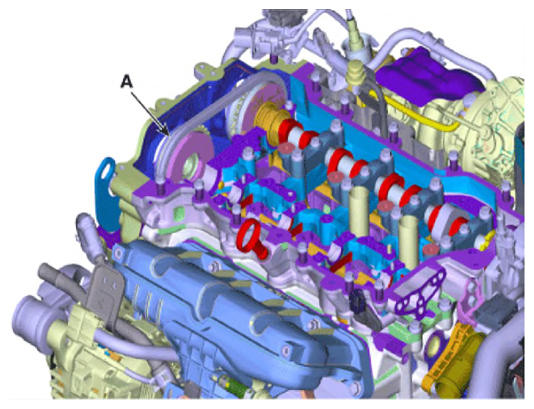

Install the Intake CVVT (A).

Courtesy of HYUNDAI MOTOR AMERICA

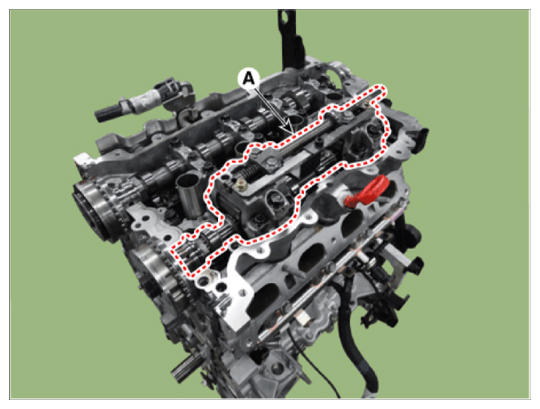

Install the CVVD assembly (A).

G14524251

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

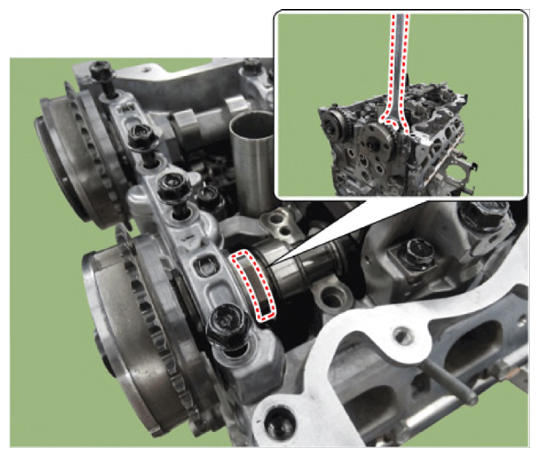

When installing the intake camshaft, spray the engine oil to the camshaft journal installing part (A) of the cam carrier.
The amount of application should be enough to flow down both the front and back sides when it is applied to the center.

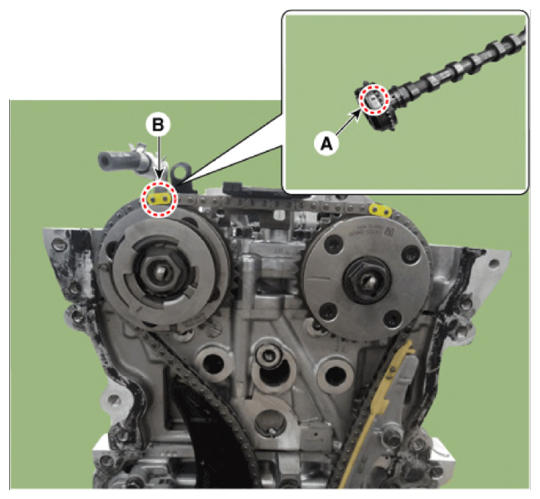

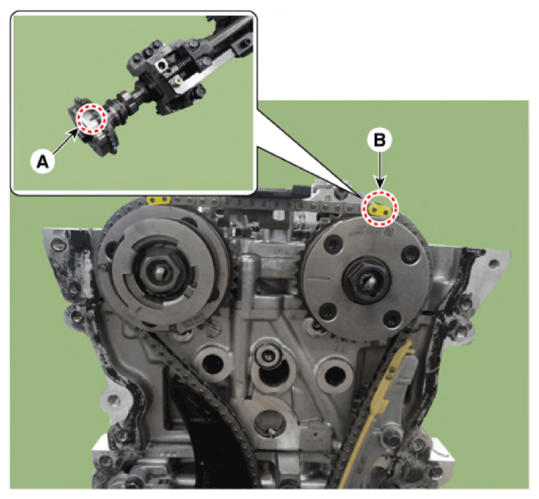

For installation, the timing mark (A) of the intake CVVT and the timing chain mark (B) should be matched.

G14524252

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

During the installation, there should be no artificial rotation or movement of the guide bracket and control shaft.
When removing the CVVD fixing jig, be sure to securely tighten the M6 bolts.
- If CVVD fixing jig is available, be sure to work by using it.

When Using the CVVD fixture

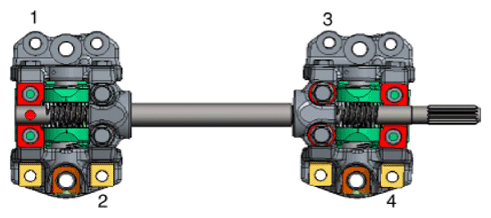

When installing the CVVD assembly mounting bolts (M6), tighten sequence shown.
Tightening torque:

1ST

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

2nd

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 1: CVVD Assembly Mounting Bolts (Tightening Sequence)
Courtesy of HYUNDAI MOTOR AMERICA

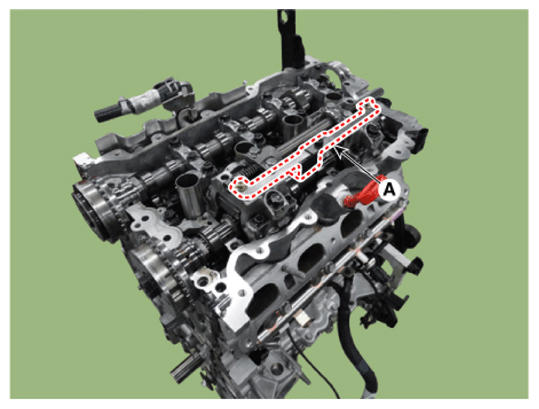

Remove the CVVD fixture (A).

G14524254

Courtesy of HYUNDAI MOTOR AMERICA

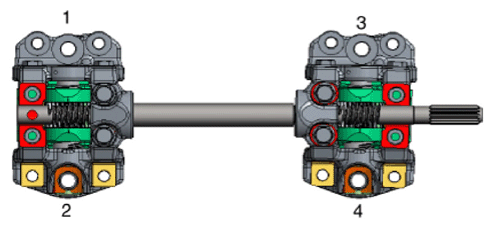

When installing the CVVD assembly mounting bolts (M6), tighten sequence shown.
Tightening torque:

1ST

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

2nd

18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

Fig 2: CVVD Assembly Mounting Bolts (Tightening Sequence)
Courtesy of HYUNDAI MOTOR AMERICA

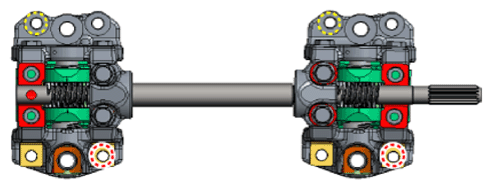

Remove the CVVD assembly mounting bolts (M6) (A).

G14524256

Courtesy of HYUNDAI MOTOR AMERICA

When installing the CVVD assembly mounting bolts (M6), tighten sequence shown.
Tightening torque:

1ST

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

2nd

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 3: CVVD Assembly Mounting Bolts (Tightening Sequence)
Courtesy of HYUNDAI MOTOR AMERICA

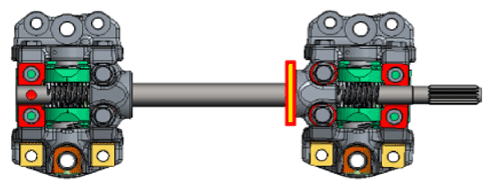

Measure the clearance between the control shaft bearing cap and the end of control shaft using a clearance gauge.
Clearance: 0.0 - 0.05 mm (0.0 - 0.002 in.)

G14524258

Courtesy of HYUNDAI MOTOR AMERICA

When not using the CVVD fixture

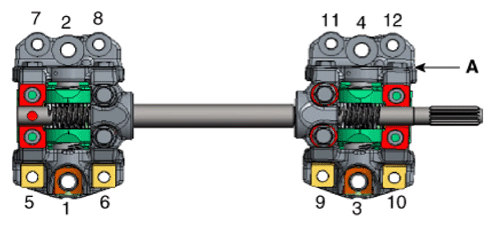

When installing the CVVD assembly (A) mounting bolts, tighten sequence shown.
1ST

M8 bolts: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

M6 bolts: 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

2nd

M8 bolts: 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

M6 bolts: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 4: CVVD Assembly Mounting Bolts (Tightening Sequence)
Courtesy of HYUNDAI MOTOR AMERICA

Release the torque of control shaft bearing cap bolt (A).

G14524260

Courtesy of HYUNDAI MOTOR AMERICA

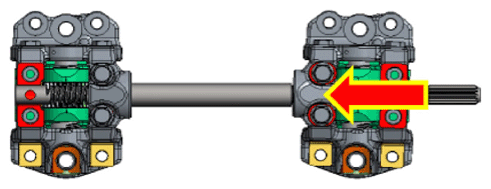

Push the control shaft bearing cap as close as possible in the direction of the arrow.

G14524261

Courtesy of HYUNDAI MOTOR AMERICA

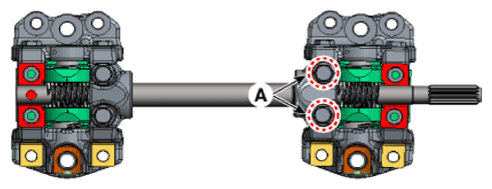

Install the control shaft bearing cap mounting bolts (A).

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

G14524262

Courtesy of HYUNDAI MOTOR AMERICA

Measure the clearance between the control shaft bearing cap and the end of control shaft using a clearance gauge.
Clearance: 0.0 - 0.05 mm (0.0 - 0.002 in.)

G14524263

Courtesy of HYUNDAI MOTOR AMERICA

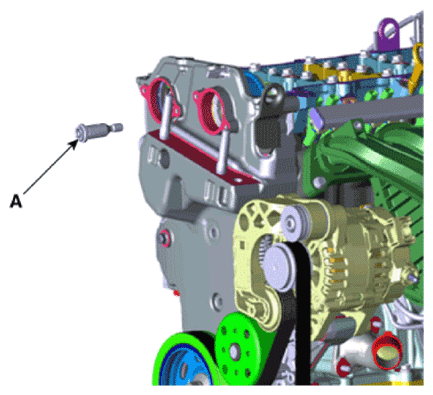

Install the intake OCV & center bolt (A).
Tightening torque:

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft) + 32 - 36°

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To prevent impurities from entering intake oil control valve (OCV) & center bolt, wear rubber gloves.
- Intake oil control valve (OCV) and center bolt, hold the hexagonal portion on the camshaft with a wrench to prevent the camshaft from rotating.
Courtesy of HYUNDAI MOTOR AMERICA

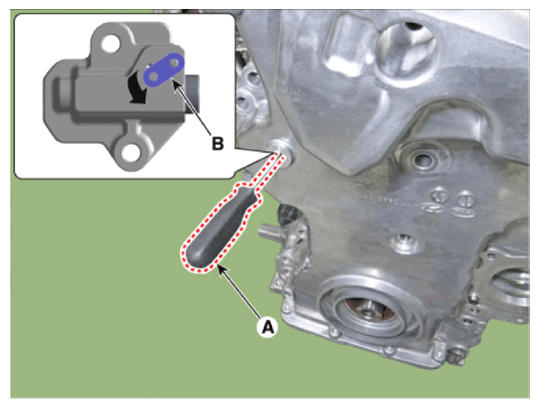

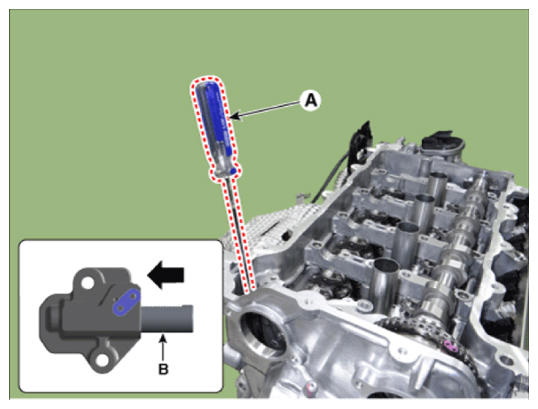

Compress the timing chain tensioner piston.

With a pry bar (A), compress the timing chain tensioner piston (B).

G14524266

Courtesy of HYUNDAI MOTOR AMERICA

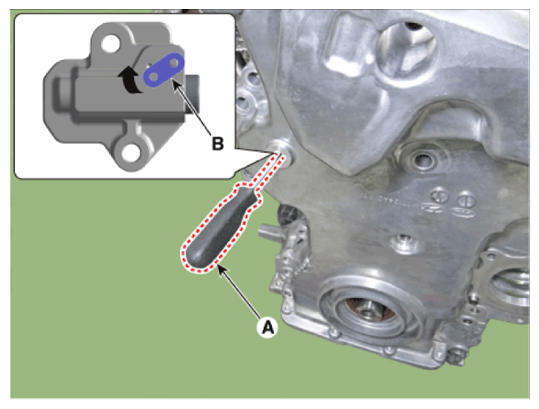

With a thin gimlet (A), raise the ratchet plate (B) of the timing chain tensioner and fix the piston.

G14524267

Courtesy of HYUNDAI MOTOR AMERICA

Information

Do not remove the pick (A).

Install the front bearing cap and camshaft bearing cap
NOTE:
- If there is enough engine oil on the camshaft front bearing cap and camshaft bearing cap installing bolt and bolt hole, tighten to the minimum required tightening torque.
- Apply engine oil the upper part of the intake/exhaust camshaft journal, then install the camshaft front bearing cap and camshaft bearing cap. The amount of application should be enough to flow down both the front and back sides when it is applied to the center.

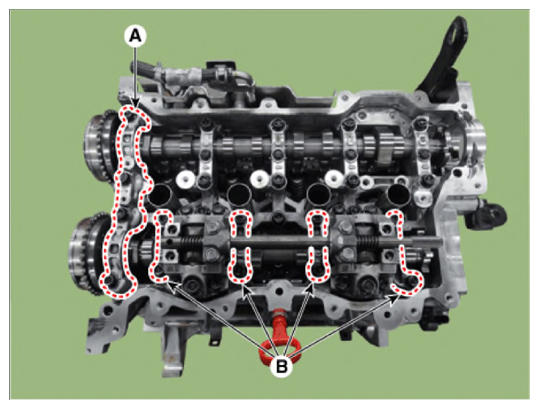

1. Install the front bearing cap (A) and intake camshaft bearing cap (B).
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fine gimlets (A) that hold the timing chain tensioner.

Courtesy of HYUNDAI MOTOR AMERICA
When installing the timing chain, be sure that the timing mark (A) of each sprocket is matched with the timing mark (B) (color link) of the timing chain.
[Intake CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

[Exhaust CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

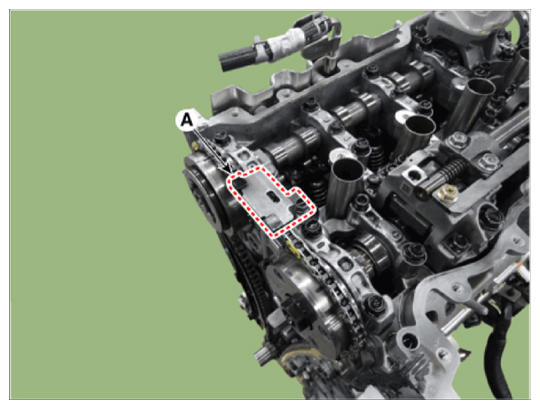

Install the cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

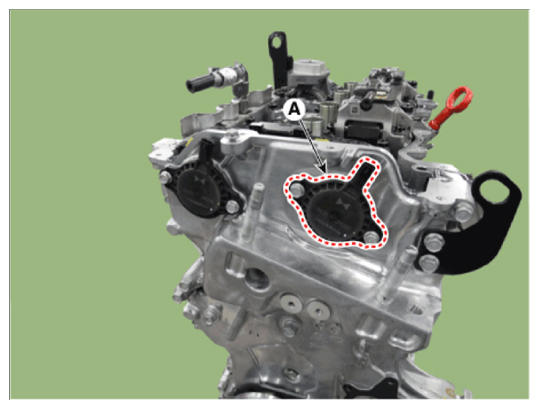

Install the intake variable force solenoid (VFS) valve (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
