Section 8 (Cylinder Head Assembly - 1.6L (Except HEV))
>>
CVVD Assembly
>>
Description And Operation
>>
Operation Principle
>>

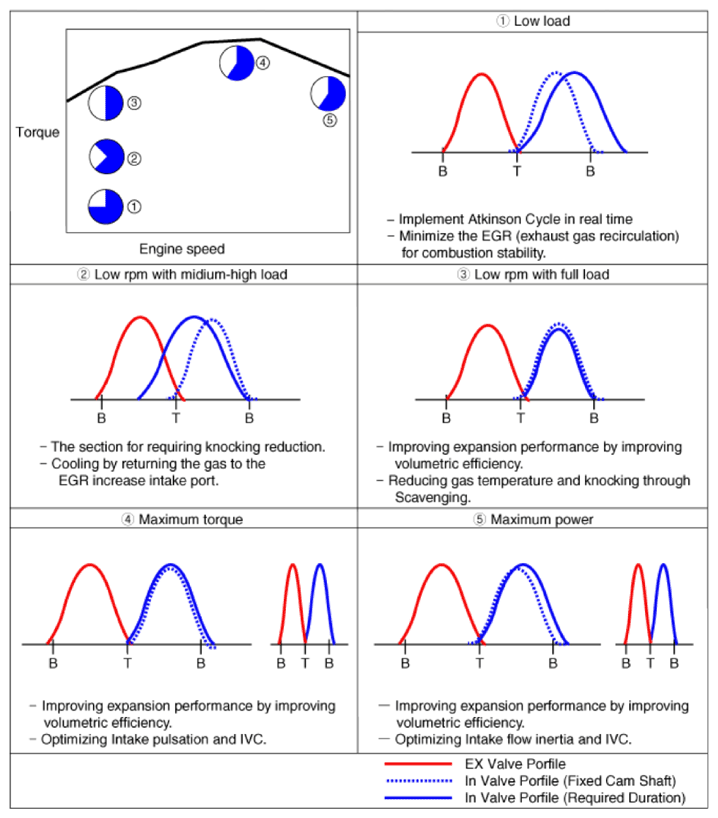

[CVVD System Operating Mode]
>>
Optimum Valve Timing by Engine Load
Optimum Valve Timing by Engine Load
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
