Description And Operation: Description
WARNING: This page is about a different variant/trim than selected.
CVVD (Continuous Variable Valve Duration) System is a device to control the optimum open and close timing according to the driving mode by changing the valve opening section.

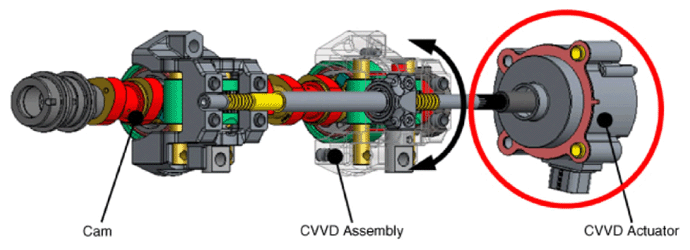

It is composed of cam shaft, CVVD assembly, and CVVD actuator.
The valve opening time operates in proportion to the RPM of control shaft.
