Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

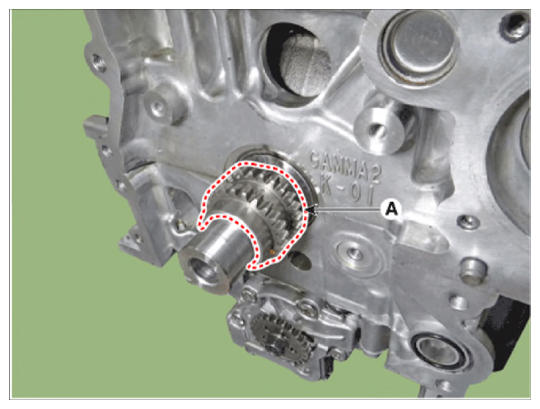

Install the crankshaft sprocket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

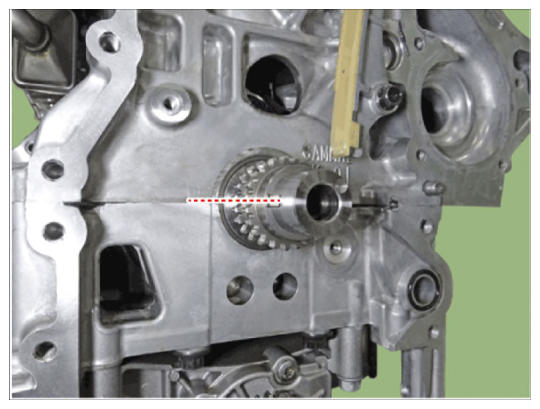

Place the crankshaft key at the left 180°.

Courtesy of HYUNDAI MOTOR AMERICA
Install the oil pump chain.
(Refer to Lubrication System - "OIL PUMP ")

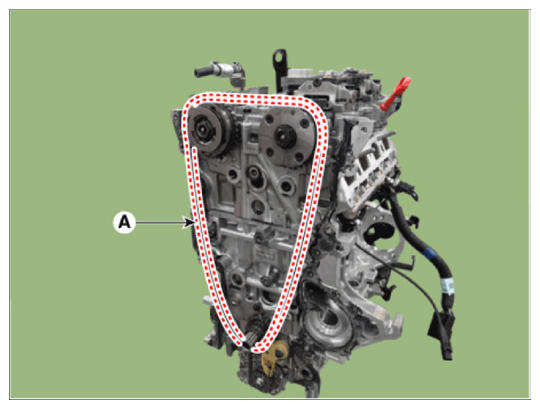

Install the timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

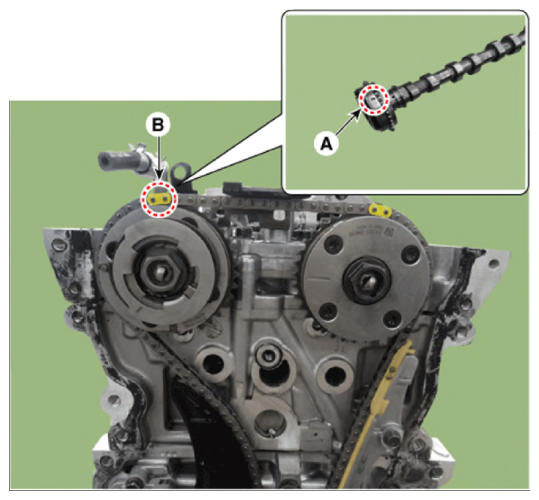

- When installing the timing chain, be sure that the timing mark (A) of each sprocket is matched with the timing mark (B) (color link) of the timing chain.
[Intake CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

[Exhaust CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

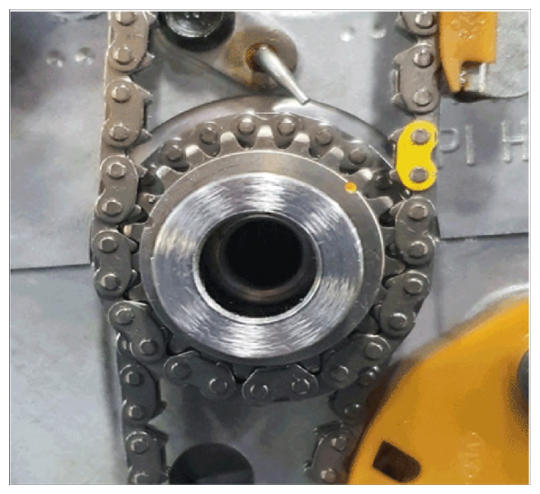

[Crankshaft Sprocket Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

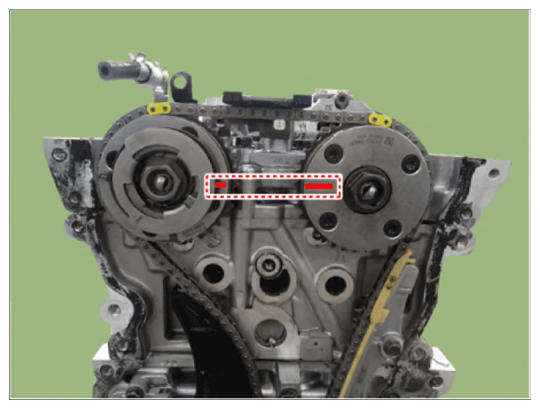

- Confirm that the TDC marks on the intake and exhaust CVVT sprockets are aligned with the top surface of cylinder head.
Courtesy of HYUNDAI MOTOR AMERICA

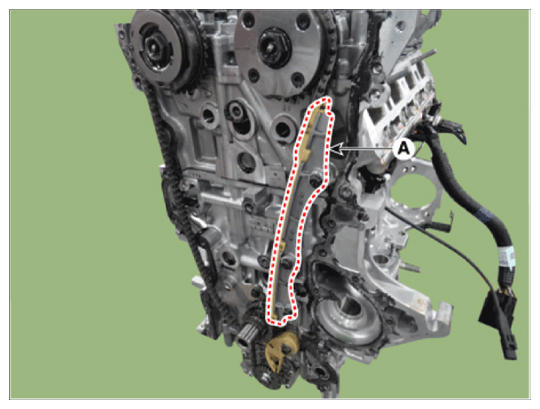

Install the timing chain guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

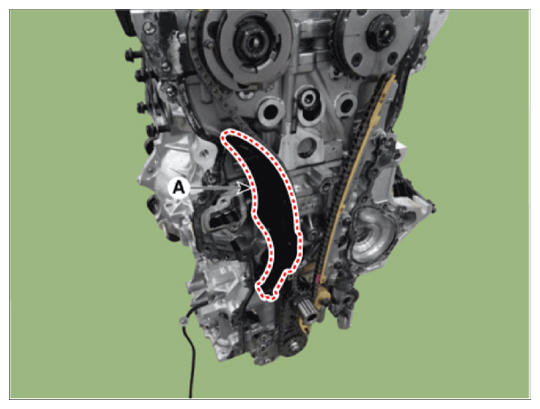

Install the timing chain tensioner arm (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

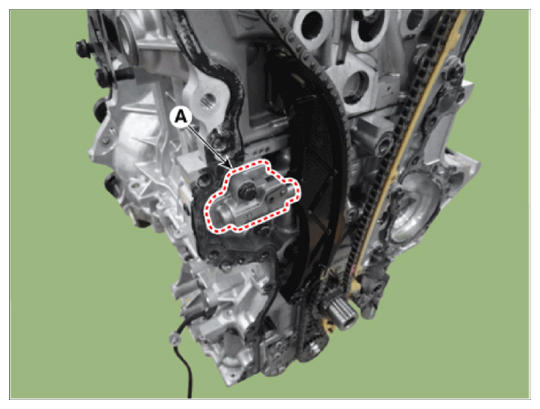

Install the timing chain tensioner (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

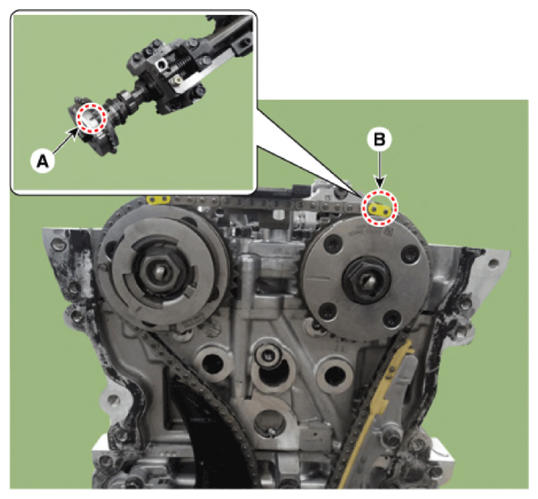

- Install the timing chain tensioner and remove the pin (A).
Courtesy of HYUNDAI MOTOR AMERICA

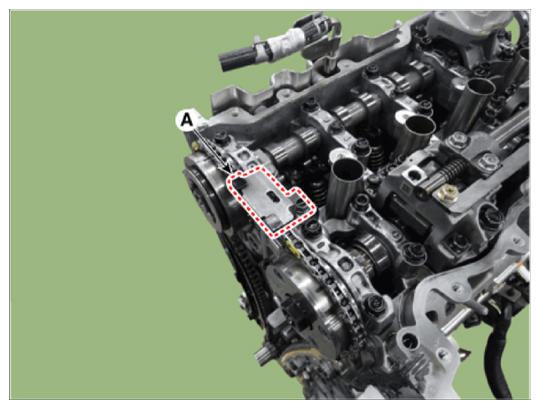

Install the cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
After rotating crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm that the TDC marks on the intake and exhaust CVVT sprockets are aligned with the top surface of cylinder head.

Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Install the other parts in the reverse order of removal.
