Removal And Installation
WARNING: This page is about a different variant/trim than selected.
* There are two methods to when removing the drive belt.
[When removing the drive belt from the top of the vehicle]

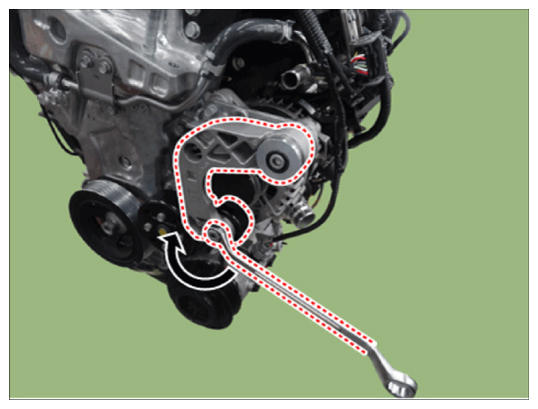

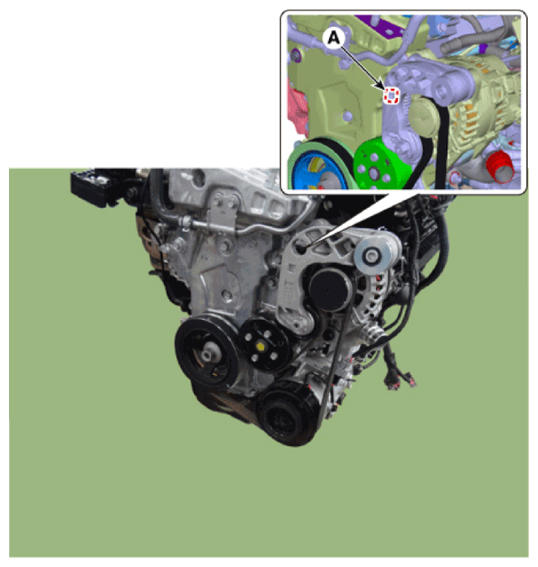

- Install the wrench to the drive belt tensioner repair hole (A) and turn it clockwise.
Information

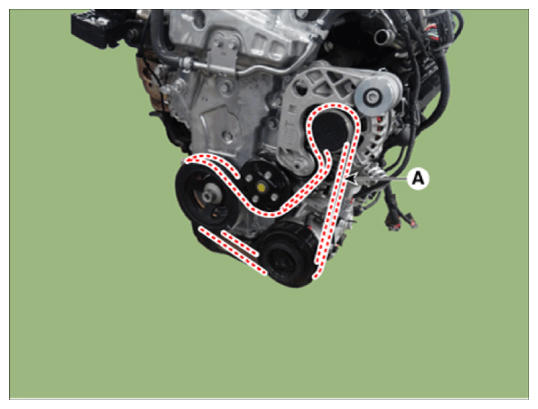

- Remove the drive belt (A).
Information
- When removing the drive belt, remove the drive belt from the water pump pulley.
- Install in the reverse order of removal.
Information
- When installation of drive belt, make the drive belt as a round hook shape bigger than alternator pulley as a picture down below. Then install it with following order of alternator → air conditioner compressor → crankshaft damper pulley → water pump → drive belt tensioner.
[When removing the drive belt from the bottom of the vehicle]
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Turn the spanner to clockwise after installing it to drive belt tensioner arm boss.
Information

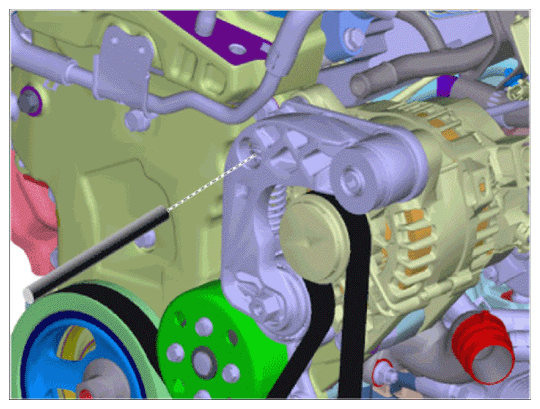

- Fix the drive belt tensioner by installing fixing pin after turning the drive belt tensioner to clockwise.
- Use fixing pins that have the same outer diameter as a 6 mm (0.2362 in.) hex wrench or a 6 mm (0.2362 in.) hex wrench.
- Remove the drive belt (A).
Information
- When removing the drive belt, remove the drive belt from the water pump pulley.
- Install in the reverse order of removal.
Information
- When installation of drive belt, make the drive belt as a round hook shape bigger than alternator pulley as a picture down below. Then install it with following order of alternator → air conditioner compressor → crankshaft damper pulley → water pump → drive belt tensioner.
