Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

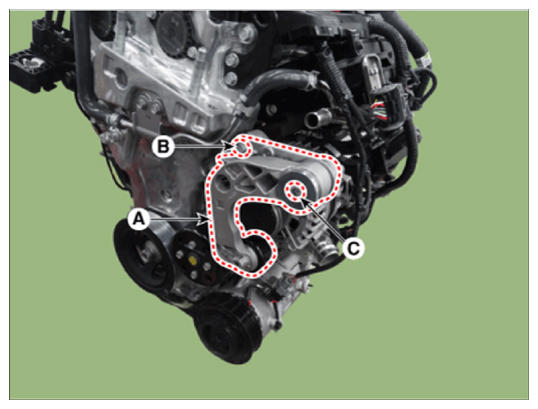

- Remove the drive belt tensioner (A).
Tightening torque
Bolt (B): 18.6 - 23.5 N.m
(1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Bolt (C): 34.3 - 41.2 N.m
(3.5 - 4.2 kgf.m, 25.3 - 30.4 lb-ft)
- Install in the reverse order of removal.
