Removal & Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

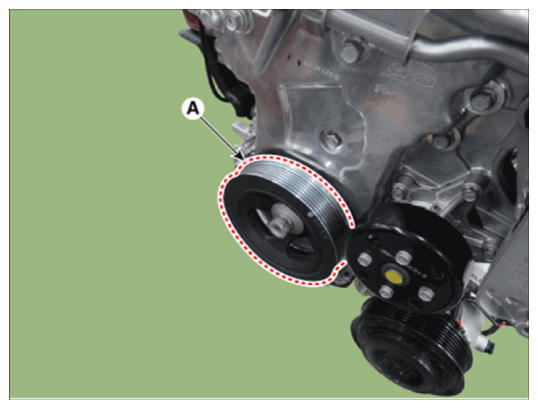

- Remove the crankshaft damper pulley (A).
Tightening torque:
66.7 - 70.6 N.m + 98 - 102°
[6.8 - 7.2 kgf.m + 98 - 102°, 49.2 - 52.1 lb-ft + 98 - 102°]

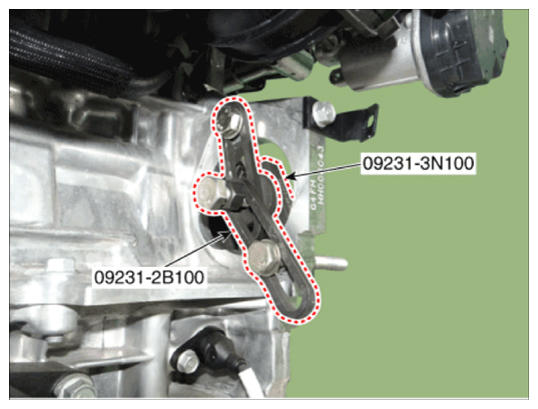

NOTE:- Fix the ring gears using the SST (09231-2B100, 09231-3N100) after removing the starter. Then remove the crankshaft damper pulley.
- Install in the reverse order of removal.
