Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

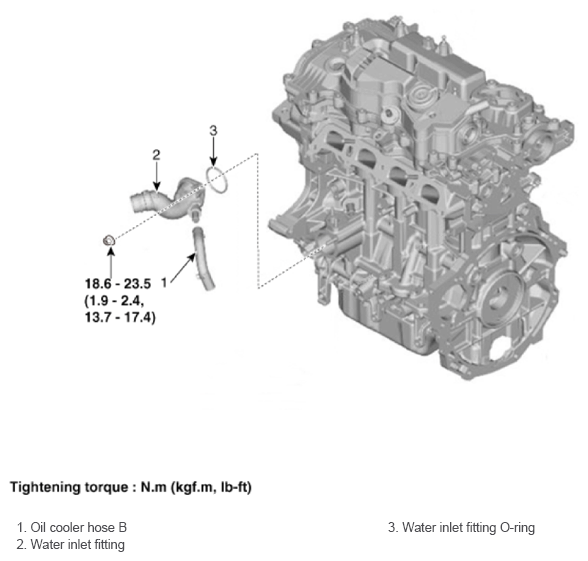

Fig 1: Water Inlet Fitting Components Location With Torque Specification
G14524480Courtesy of HYUNDAI MOTOR AMERICA
