Removal And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

  2. Remove the reservoir tank.

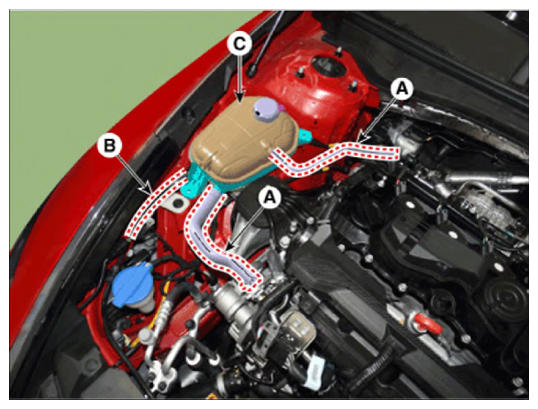

    1. Disconnect the degassing hose (A).
    2. Disconnect the water hose (B).
    3. Remove the reservoir tank (C).
    G14524450Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
  4. Fill with engine coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE:
    • The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
