Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")
Remove the cooling fan assembly.
(Refer to Cooling System - "COOLING FAN ")

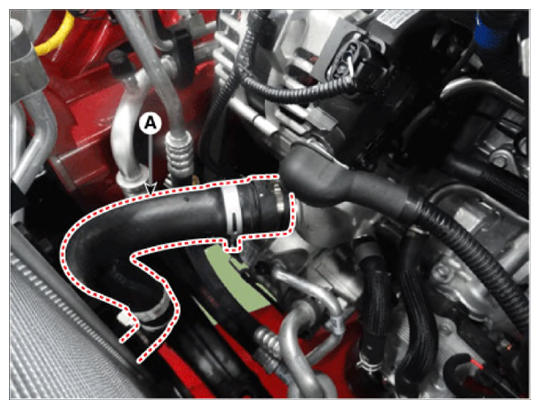

Disconnect the radiator lower hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

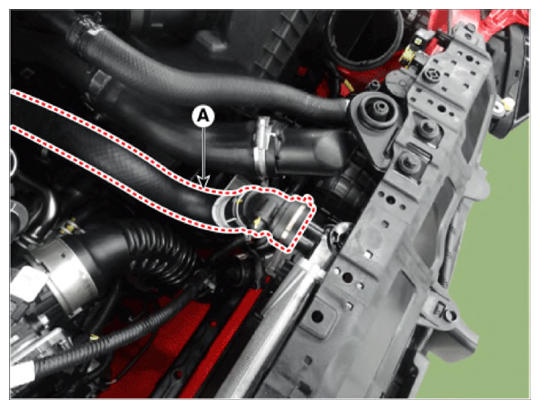

Disconnect the radiator upper hose (A)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front bumper.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

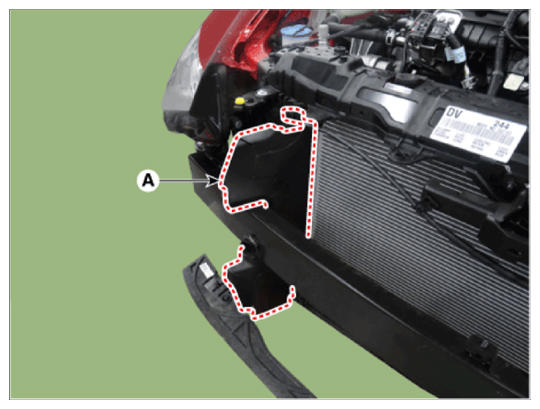

Remove the air guard (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

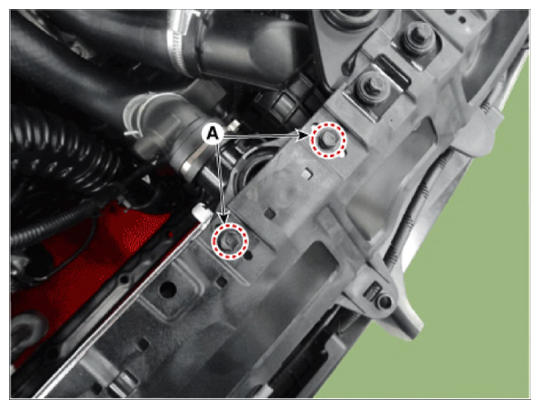

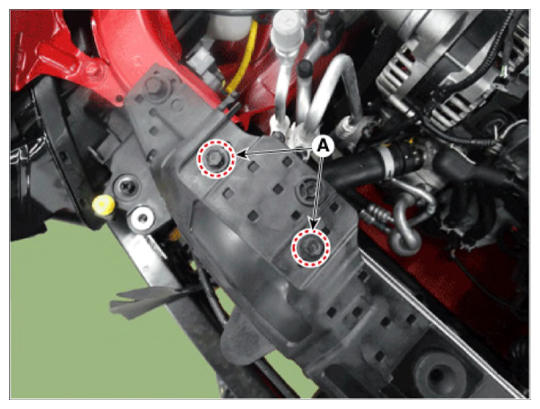

Remove the radiator upper mounting bracket bolts (A).
Tightening torque:

7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

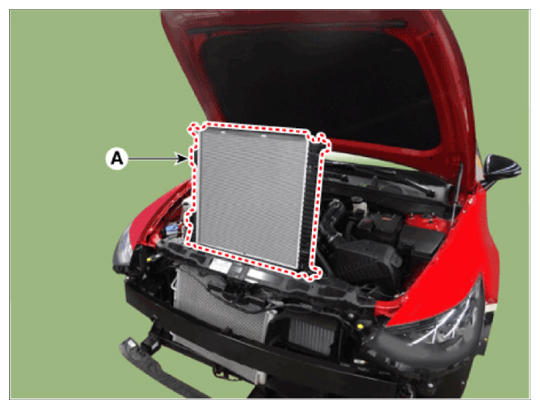

Separate the A/C condenser from the radiator and Remove the radiator (A) from the vehicle.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")
NOTE:
- The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
Start engine and check for leaks.
