Oil cooler pipe
WARNING: This page is about a different variant/trim than selected.
- Remove the heater pipe

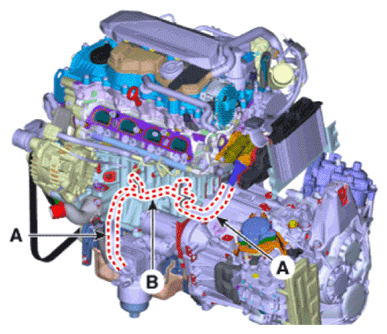

- Disconnect the oil cooler hose (A) and then remove the oil cooler pipe (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
- Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")
NOTE:- The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
- Start engine and check for leaks.
