Description & Operation: Description
WARNING: This page is about a different variant/trim than selected.

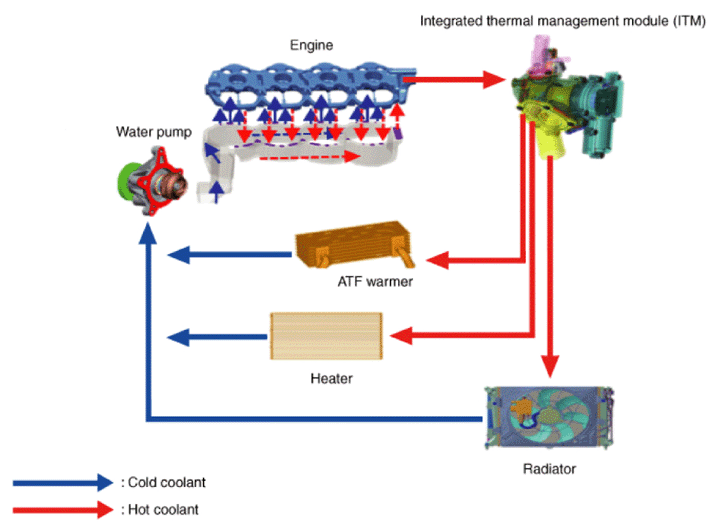

Integrated thermal management module (ITM) is a device that controls the coolant flow rate according to coolant temperature. At initial startup, the integrated thermal management module (ITM) quickly warms up the engine by controlling the flow of the coolant and this fast warm-up helps improve the fuel efficiency. When the coolant temperature rises, the integrated thermal management module (ITM) adjusts the cooling water temperature by controlling the valves to regulate the flow of coolant through a radiator or heater.
