Cooling Fan Assembly
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

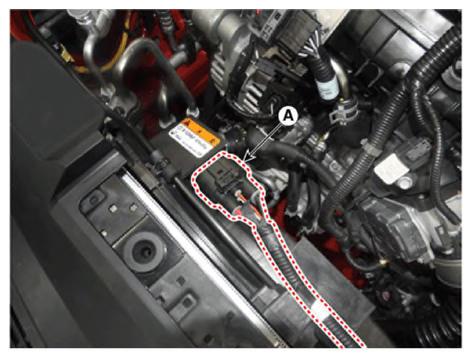

- Disconnect the wiring harness connector (A).

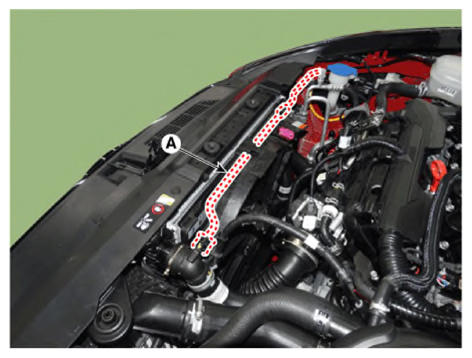

- Disconnect the over flow hose (A).

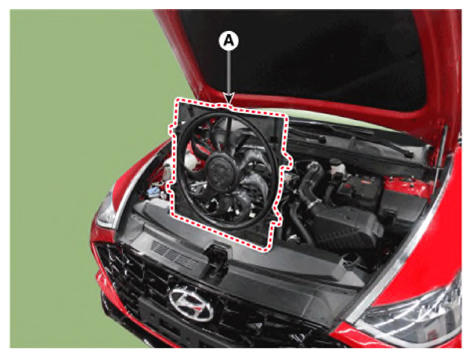

- Remove the cooling fan (A) from the radiator.
Tightening torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 Ib-ft)
- Install in the reverse order of removal.
