Pan motor

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch "OFF" and connect the GDS to the Data Link Connector.
  2. With the gear shift in P (Park) position and ignition switch "ON" (LED of the Power button illuminates in Red), select the "force drive" function.
  3. Force drive the cooling fan motor.

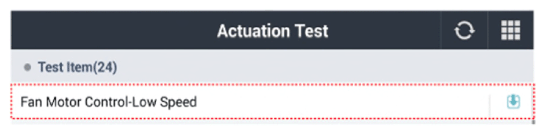

    1. Start the "Fan motor low speed" of the force drive function.
      G14524456Courtesy of HYUNDAI MOTOR AMERICA

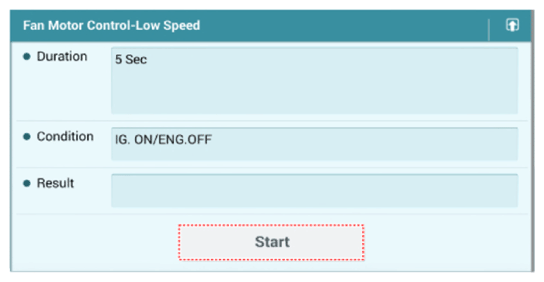

    2. Press the start button and force drive for 5 seconds.
      G14524457Courtesy of HYUNDAI MOTOR AMERICA
    3. Visually check the operation of the cooling fan.
