Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.

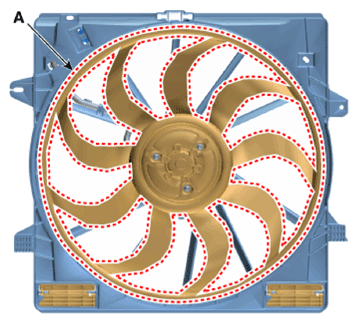

- Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|

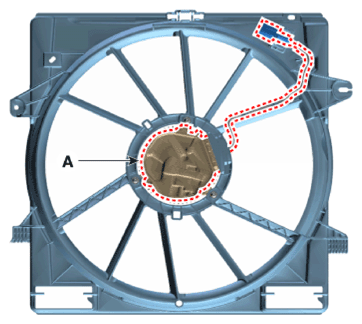

- Remove the fan motor (A) from the cooling fan shroud.
Tightening torque:
5.65 - 6.15 N.m (0.565 - 0.615 kgf.m, 4.1 - 4.4 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
