Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and then disconnect the battery (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

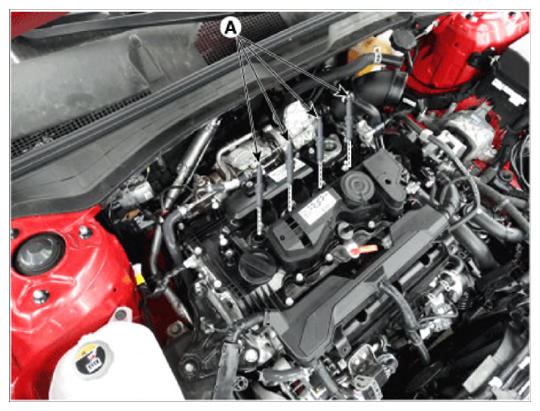

- Using a spark plug wrench, remove the spark plug (A).
