Connector assembly status test

WARNING: This page is about a different variant/trim than selected.

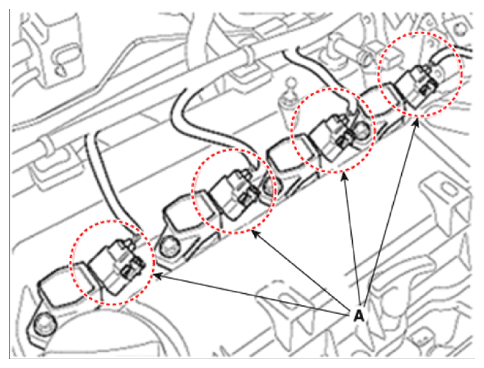

  1. Remove the connector (A) and reinstall it.
    G14524646Courtesy of HYUNDAI MOTOR AMERICA

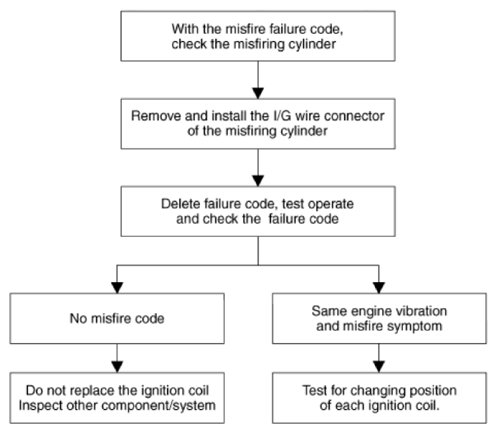

    G14524647Courtesy of HYUNDAI MOTOR AMERICA
