Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the engine cover.

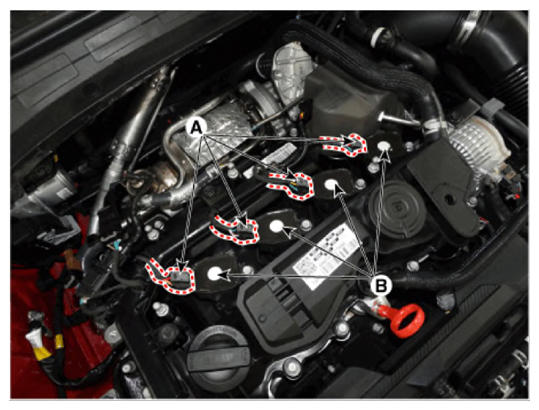

- Disconnect the ignition coil connector (A).
- Remove the ignition coil (B) after loosening the mounting bolt.
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:

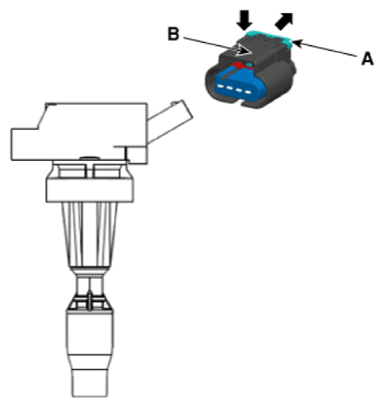

- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|
