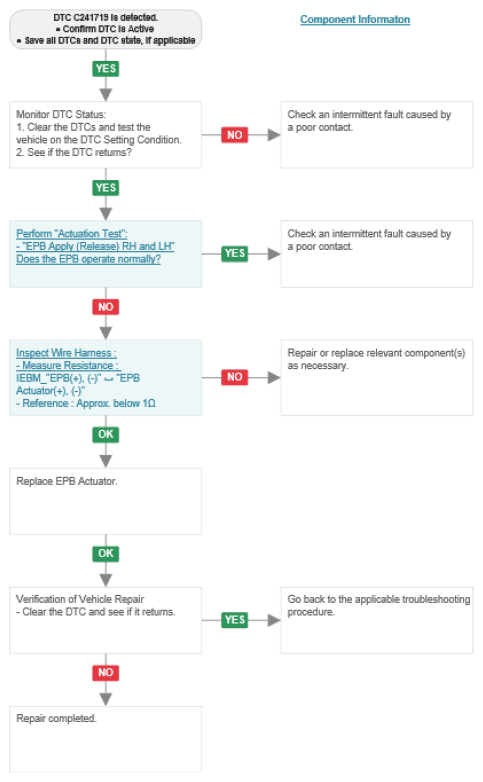

Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.

G15450145

Courtesy of HYUNDAI MOTOR AMERICA
