GDS Data Analysis

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to Data Link Connector (DLC).
  2. Turn Engine "ON".
  3. Change the position of shift lever.

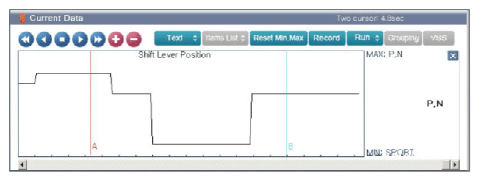

  4. Monitor the "Shift Lever Position" parameter on the "Current Data" menu of the GDS.
G15450127Courtesy of HYUNDAI MOTOR AMERICA
