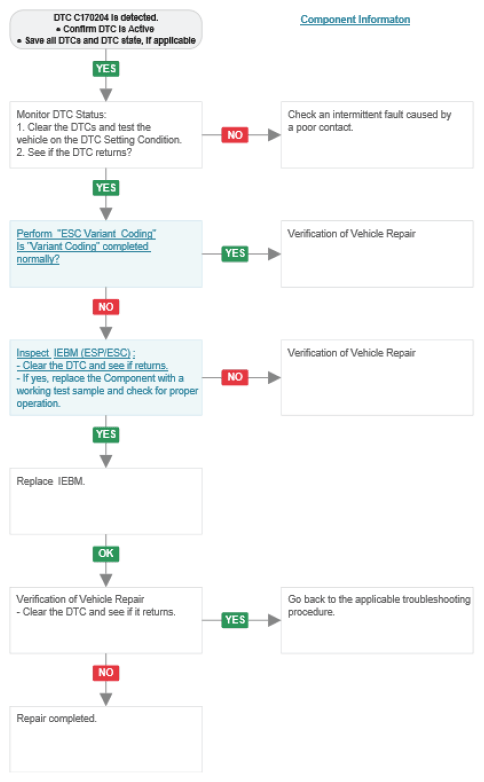

Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.
G15450116Courtesy of HYUNDAI MOTOR AMERICA
NOTE: *In a case of replacing IEBM, perform following functions:
  1. "Steering Angle Sensor Calibration" for steering angle sensor offset correction (refer to DTC C1261-04: STEERING ANGLE SENSOR NOT CALIBRATED ) -ESP (ESC) only.
  2. "Longitudinal Sensor Calibration" for Longitudinal sensor offset correction (refer to DTC C1285-04: UNCALIBRATED AX SIGNAL ) - ESP (ESC) only.
  3. "Variant Coding" for option coding (refer to DTC C1702-04 ) .
