Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.

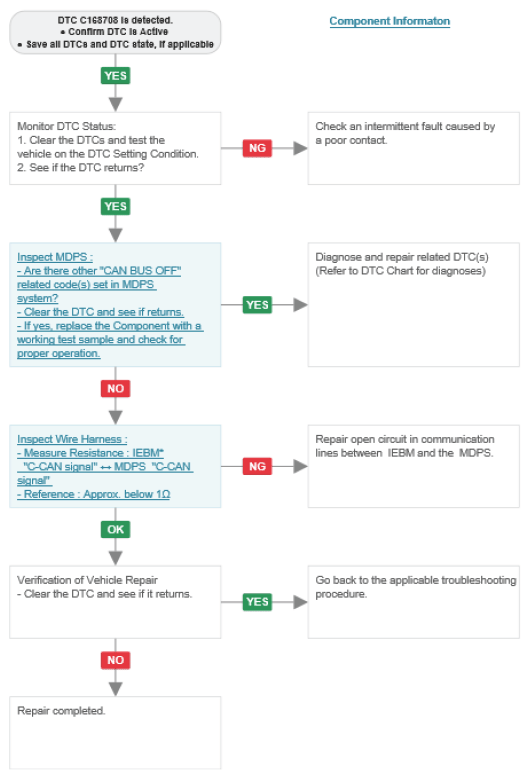

G15450113Courtesy of HYUNDAI MOTOR AMERICA
NOTE: * In a case of replacing Steering Angle Sensor, perform "Steering Angle Sensor Calibration" in "Vehicle S/W Management" menu of the GDS.
