GDS Data Analysis

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to Data Link Connector (DLC).
  2. Turn engine "ON".
  3. Drive the vehicle with left, right turn.

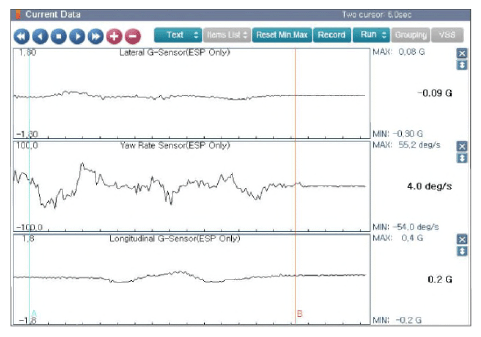

  4. Monitor the "Lateral G Sensor, Yaw Rate Sensor, Longitudinal G Sensor" parameter on the "Current Data" menu of the GDS.

    Specification:  The parameters should be changed while turning

    G15450110Courtesy of HYUNDAI MOTOR AMERICA
