Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.

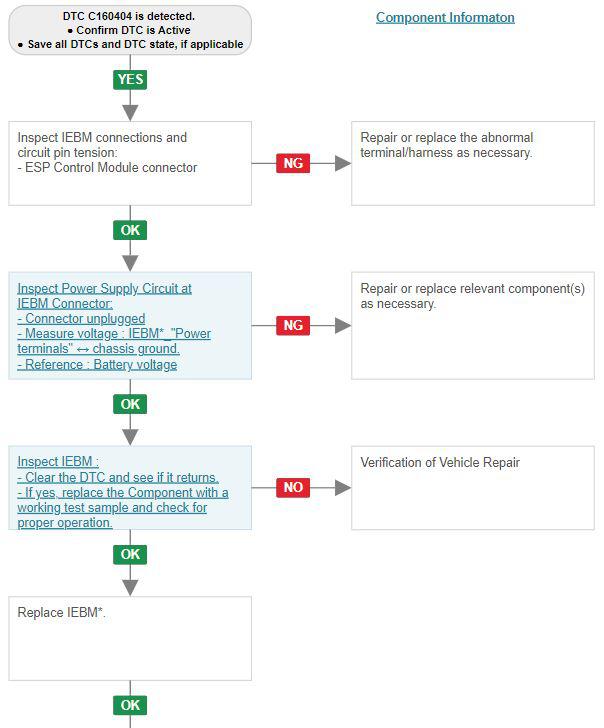

Fig 1: 1 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: 2 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

* In a case of replacing IEBM, perform following functions

1) "Steering Angle Sensor Calibration" for steering angle sensor offset correction (refer to DTC C1261-04: Steering Angle Sensor Not Calibrated ) -ESP (ESC) only

2) "Longitudinal Sensor Calibration" for Longitudinal sensor offset correction (refer to DTC C1285-04: Uncalibrated Ax Signal ) - ESP (ESC) only

3) "Variant Coding" for option coding (refer to DTC C1702-04: VARIANT CODING ERROR )
