GDS Data Analysis

WARNING: This page is about a different variant/trim than selected.

Connect GDS to Data Link Connector (DLC).
Turn ignition switch "ON".

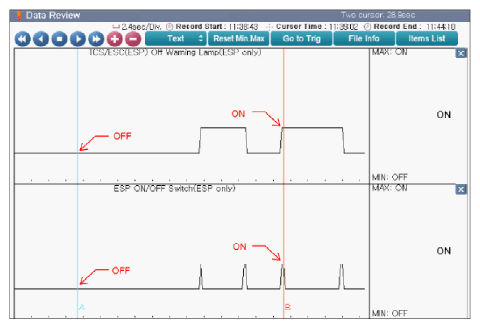

Check the "Current Data" about related DTC with GDS.
Specification: When hitting the switch, TCS/ESP OFF warning lamp will respond and ESP OFF lamp will be ON

Courtesy of HYUNDAI MOTOR AMERICA
