Section 30 (Abs/ESC Diagnosis (HEV) (1 Of 2))
>>
DTC C1501-01: Switch Failure
>>
Troubleshooting
>>

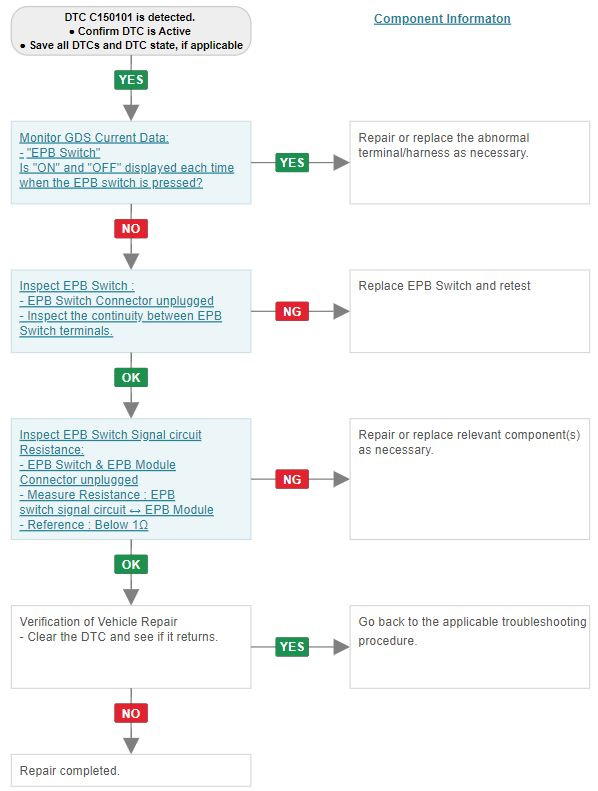

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
