GDS Data Analysis
WARNING: This page is about a different variant/trim than selected.
- Connect Data Link Connector (DLC) to GDS.
- Check the "Current Data" about related DTC with GDS.

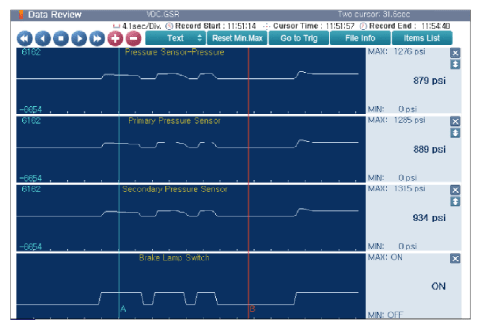

- Hit on and off the brake pedal a few times and monitor the "Pressure Sensor" parameter on the "Current Data" menu of the GDS.
Specification:
When braking, pressure sensor value should change
 Courtesy of HYUNDAI MOTOR AMERICA
|
