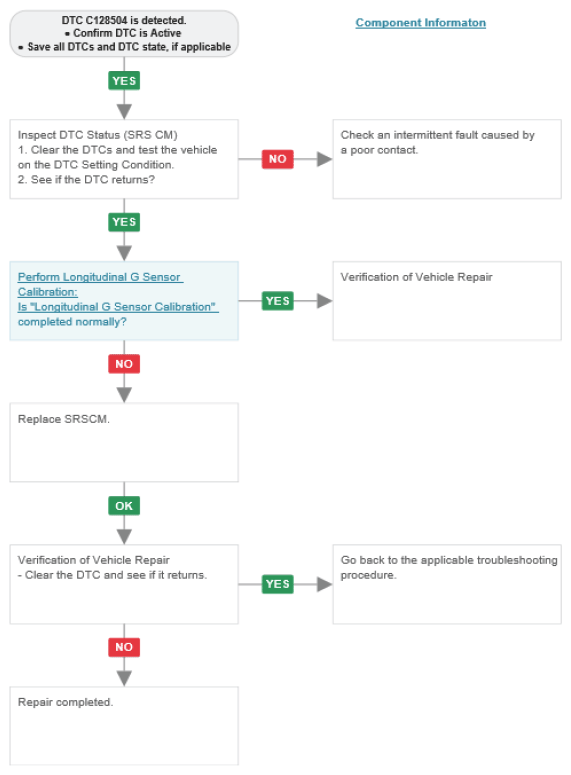

Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.
G15450069Courtesy of HYUNDAI MOTOR AMERICA
NOTE: * In case of replacing the SRSCM, follow the replacement procedure of the DTC B1620 (Internal fault-Replace SRSCM) of the SRSCM and then perform "longitudinal G sensor Calibration" in "Vehicle S/W Management" menu of the GDS.
