Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.

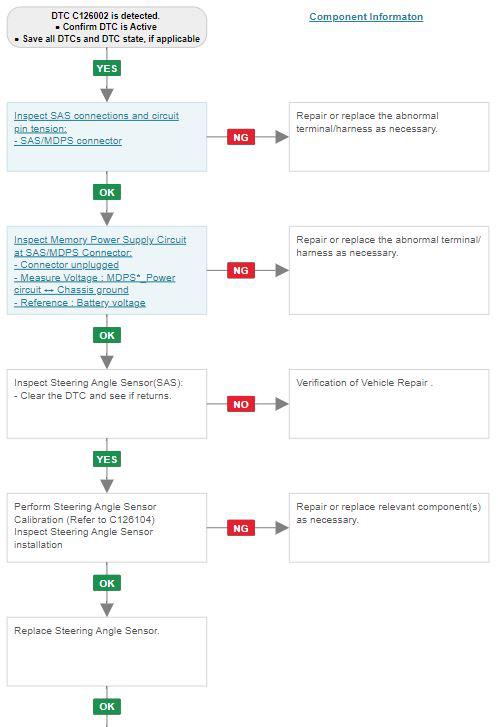

Fig 1: 1 Of 2
G15450060Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
G00619142Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

* In a case of replacing Steering Angle Sensor, perform "Steering Angle Sensor Calibration" in "Vehicle S/W Management" menu of the GDS.
