Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 30 (Abs/ESC Diagnosis (HEV) (1 Of 2)) >> DTC C1202-02: Wheel Speed Sensor Front-LH Invalid/No Signal >> Troubleshooting >> Diagnostic Flowchart

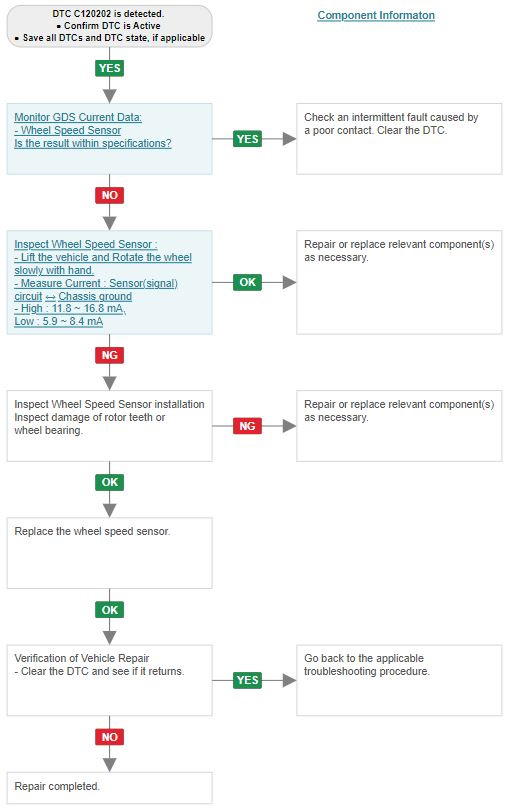

Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.

G15450050

Courtesy of HYUNDAI MOTOR AMERICA
