Section 30 (Abs/ESC Diagnosis (HEV) (1 Of 2))
>>
DTC C1200-01: Wheel Speed Sensor Front-LH Open/Short
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.

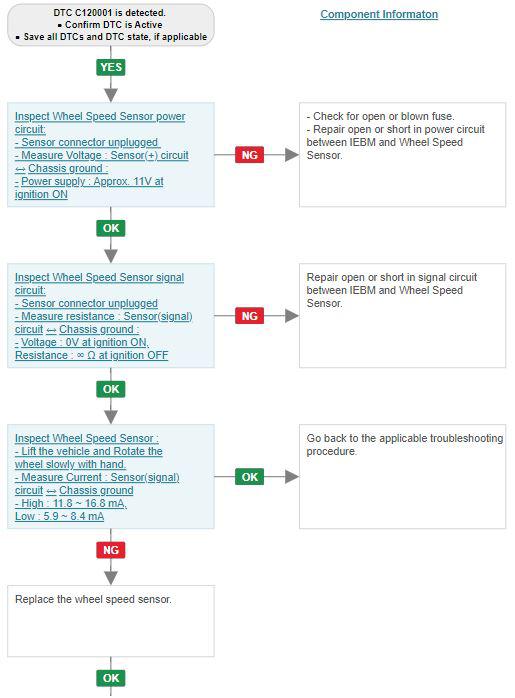

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
